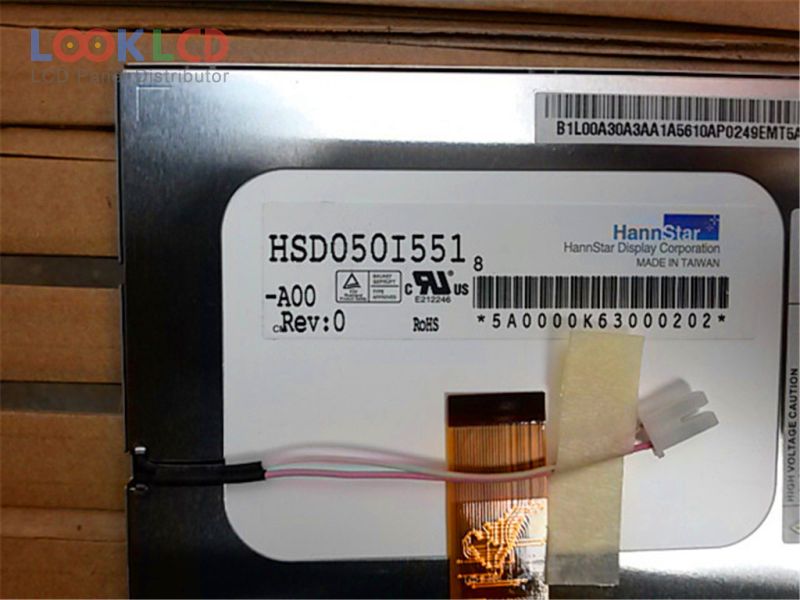

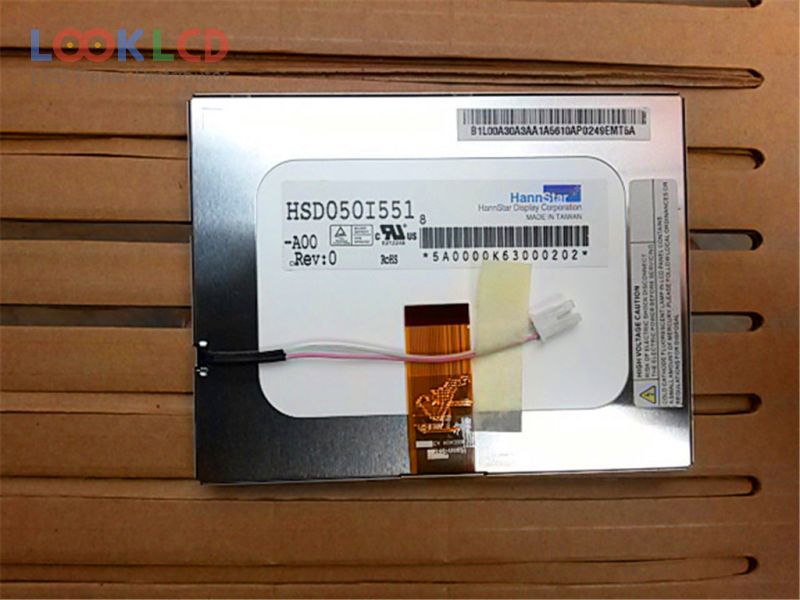

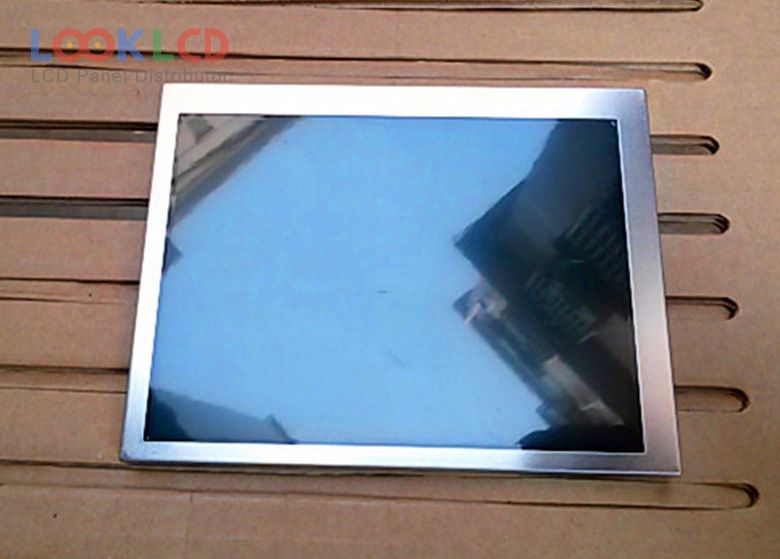

| Broj dijela | HSD050I551-A00 |
| Marka | HannStar |
| Veličina | 5.0 |
| Primjena | VDP |
| Rezolucija | 320×234 |
| Sastav | LCM |
| Svjetlina | 400 |
| CR | 350:1 |
| Boje | |
| Pozadinsko osvjetljenje | CCFL |
| Sučelje | Analog |
| marka panela | HannStar |
| panelni model | HSD050I551-A00 |
| vrsta panela | a-Si TFT-LCD , LCM |
| veličina ploče | 5.0 inch |
| rezolucija | 320(RGB)×234 |
| način prikaza | TN, Normally White, Transmissive |
| aktivno područje | 102.72×74.53 mm |
| obris | 119.3×91.4×7.8 mm |
| površinski | Antiglare, Hard coating (3H) |
| svjetlina | 400 cd/m² (Typ.) |
| omjer kontrasta | 350:1 (Typ.) |
| boje prikaza | |
| vrijeme odziva | 5/20 (Typ.)(Tr/Td) |
| kut gledanja | 60/60/40/60 (Typ.)(CR≥10)(L/R/U/D) |
| tip svjetiljke | 1 pcsCCFLWithout Driver |
| signalno sučelje | TFT Specific Analog RGB, 30 pins |
| ulazni napon | 3/5/15/-10V (Typ.)(DVDD/AVDD/VGH/VGL) |
| rohs: | |
| primjena | VDP |
