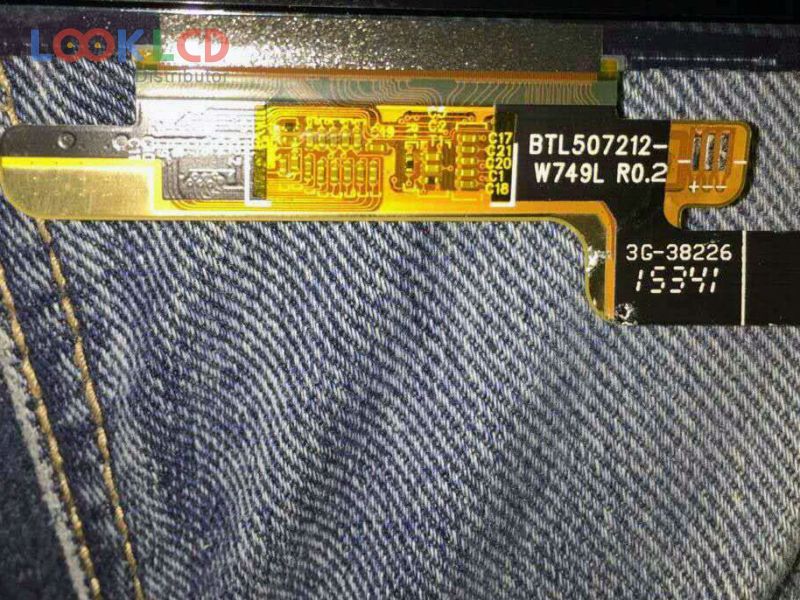

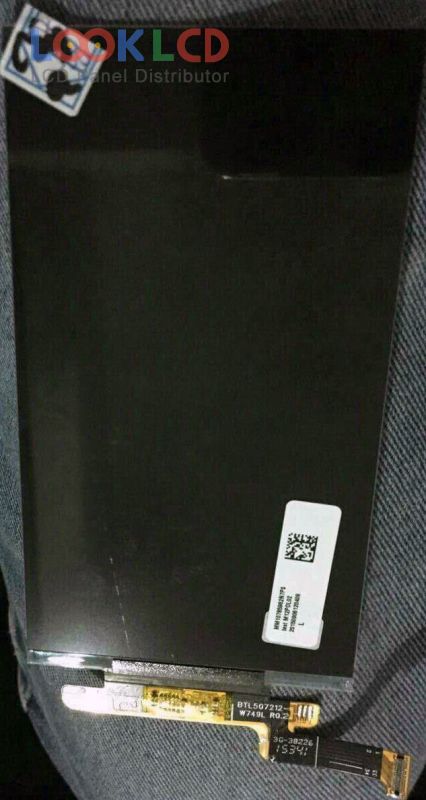

| Broj dijela | BTL507212-W749L |
| Marka | BOE |
| Veličina | 5.0 |
| Primjena | MPH |
| Rezolucija | 720×1280 |
| Sastav | LCM |
| Svjetlina | |
| CR | 700:1 |
| Boje | 16.7M |
| Pozadinsko osvjetljenje | WLED |
| Sučelje | MIPI |
| marka panela | BOE |
| panelni model | BTL507212-W749L |
| vrsta panela | a-Si TFT-LCD , LCM |
| veličina ploče | 5.0 inch |
| rezolucija | 720(RGB)×1280 , WXGA |
| način prikaza | ADS, Normally Black, Transmissive |
| aktivno područje | 62.1×110.4 mm |
| površinski | |
| svjetlina | |
| omjer kontrasta | 700:1 (Typ.) |
| boje prikaza | 16.7M (8-bit), CIE193170% |
| vrijeme odziva | 35 (Typ.)(Tr+Td) |
| kut gledanja | 80/80/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| frekvencija | 60Hz |
| tip svjetiljke | WLEDWithout Driver |
| signalno sučelje | MIPI (4 data lanes), 27 pins |
| ulazni napon | (1.8/2.8)/2.8V (Typ.)(IOVCC/VCC) |
| primjena | MPH |
