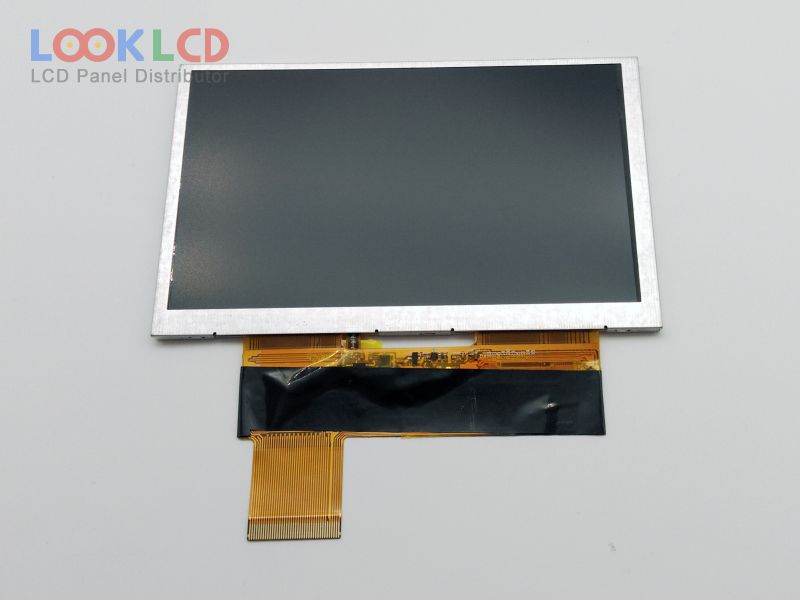

| Broj dijela | YX050800480WTIPS |
| Marka | |
| Veličina | 5.0 |
| Primjena | CNS |
| Rezolucija | 800×480 |
| Sastav | LCM |
| Svjetlina | 500 |
| CR | 700:1 |
| Boje | 16.7M |
| Pozadinsko osvjetljenje | WLED |
| Sučelje | TTL |
| marka panela | |
| panelni model | YX050800480WTIPS 0 Compatible model |
| vrsta panela | a-Si TFT-LCD , LCM |
| veličina ploče | 5.0 inch |
| rezolucija | 800(RGB)×480 , WVGA |
| način prikaza | IPS, Normally Black, Transmissive |
| aktivno područje | 108×64.8 mm |
| obris | 120.7×75.8 mm |
| površinski | Antiglare |
| svjetlina | 500 cd/m² (Typ.) |
| omjer kontrasta | 700:1 (Typ.) |
| boje prikaza | 16.7M (8-bit) |
| vrijeme odziva | 10/10 (Typ.)(Tr/Td) |
| kut gledanja | 85/85/85/85 (Typ.)(CR≥10)(L/R/U/D) |
| frekvencija | 60Hz |
| tip svjetiljke | WLEDWithout Driver |
| signalno sučelje | Parallel RGB (1 ch, 8-bit) |
| ulazni napon | 3.3V (Typ.) |
| primjena | CNS |
| A050FW02 V5 | AUO | 5.0 | 480×272 |
| G050VTN01.1 | AUO | 5.0 | 800×480 |
| HSD050FMW2-D00 | HannStar | 5.0 | 540×960 |
| HSD050IDW1-A30 | HannStar | 5.0 | 800×480 |
| LT050CA41000 | JDI | 5.0 | 800×480 |
| LTE052T-4301-1 | TPO | 5.0 | 320×234 |
| TFD50W52MS3 | TOSHIBA | 5.0 | |
| TM050NDH01 | Tianma | 5.0 | 480×272 |
| TM050QDH06 | Tianma | 5.0 | 640×480 |
| YX050800480WTIPS | 5.0 | 800×480 |
| A070FW03 V6 | AUO | 7.0 | 480×234 |
| L5F30614T65 | SANYO | 8.0 | 800×480 |
| LA080WV2-TD01 | LG Display | 8.0 | 800×480 |
| LB070WQ5-TD01 | LG Display | 7.0 | 480×240 |
| LB070WQ7-TD02 | LG Display | 7.0 | 480×234 |
| LQ065T5DG30 | SHARP | 6.5 | 400×240 |
| LQ088H9DR01U | SHARP | 8.8 | 640×240 |
| LTA065B626A | TOSHIBA | 6.5 | 400×234 |
| PW080XU1 | E Ink | 8.0 | 480×220 |
| TD070WGCB2 | TPO | 7.0 | 854×480 |
