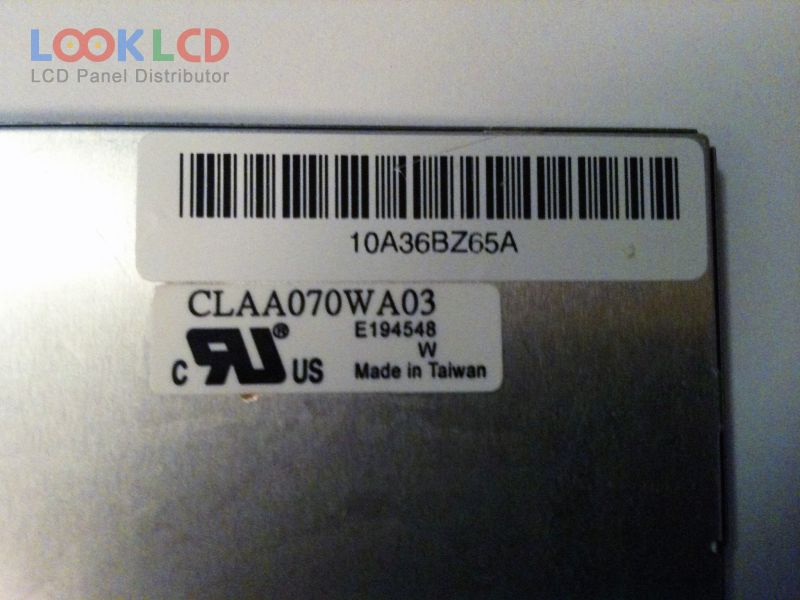

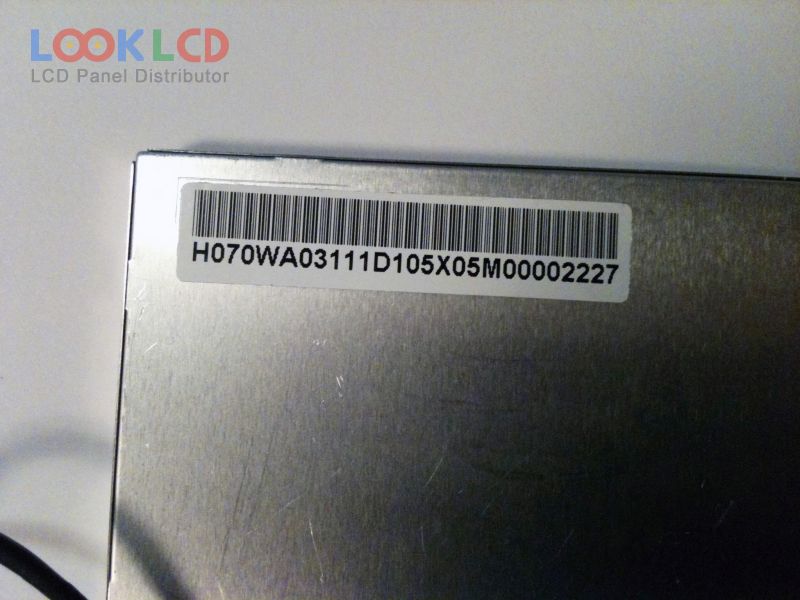

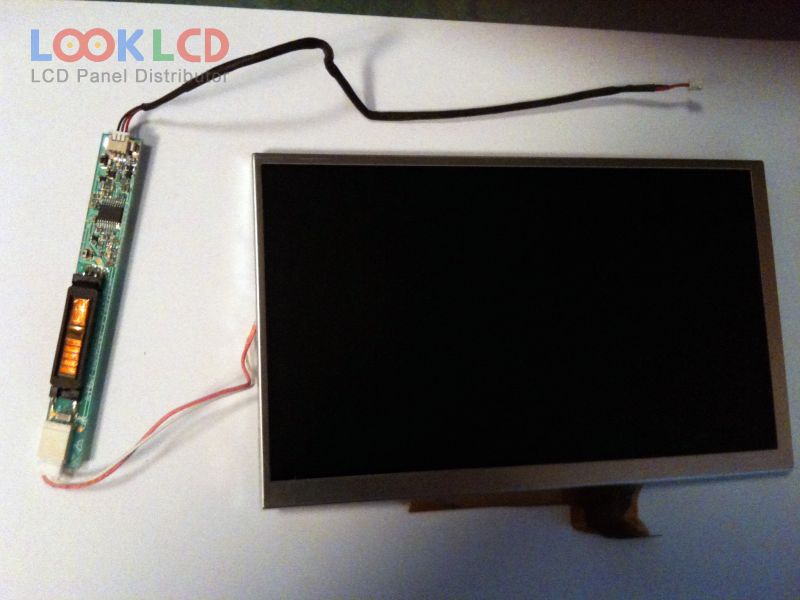

| Broj dijela | CLAA070WA03 |
| Marka | CPT |
| Veličina | 7.0 |
| Primjena | VDP |
| Rezolucija | 480×234 |
| Sastav | LCM |
| Svjetlina | 350 |
| CR | 400:1 |
| Boje | Full color |
| Pozadinsko osvjetljenje | CCFL |
| Sučelje | Analog |
| marka panela | CPT |
| panelni model | CLAA070WA03 |
| vrsta panela | a-Si TFT-LCD , LCM |
| veličina ploče | 7.0 inch |
| rezolucija | 480(RGB)×234 |
| način prikaza | TN, Normally White, Transmissive |
| aktivno područje | 154.08×86.58 mm |
| obris | 164.9×100 mm |
| površinski | Antiglare |
| svjetlina | 350 cd/m² (Typ.) |
| omjer kontrasta | 400:1 (Typ.) |
| boje prikaza | Full color |
| vrijeme odziva | 30 (Typ.)(Tr+Td) |
| kut gledanja | 60/60/40/60 (Typ.)(CR≥10)(L/R/U/D) |
| tip svjetiljke | 1 pcsCCFL |
| signalno sučelje | TFT Specific Analog RGB, 26 pins |
| ulazni napon | 5/5/15/-6V (Typ.)(VCC/AVDD/VGH/VGL) |
| rohs: | |
| primjena | VDP |
| CLAA057VA02CW | CPT | 5.7 | 640×480 |
| CLAA069LB02CW | CPT | 7.0 | 800×480 |
| CLAA069LC01XW | CPT | 7.0 | 800×480 |
| CLAA070JA1BCW | CPT | 7.0 | 480×234 |
| CLAA070LFB1 CW | CPT | 7.0 | 800×480 |
| CLAA070LJ01CW | CPT | 7.0 | 800×480 |
| CLAA070ND28CW | CPT | 7.0 | 1024×600 |
| CLAA070NJ07CW | CPT | 7.0 | 1024×600 |
| CLAA070WP03 | CPT | 7.0 | 800×1280 |
| CLAA070WP06 XG | CPT | 7.0 | 800×1280 |
| A056DN01 | AUO | 5.6 | 320×234 |
| A070FW03 V4 | AUO | 7.0 | 480×234 |
| A070FW03 V8 | AUO | 7.0 | 480×234 |
| AT056TN03 | Innolux | 5.6 | 320×234 |
| DLC0500AIG-2 | Other | 5.0 | 640×480 |
| HSD050I551-A00 | HannStar | 5.0 | 320×234 |
| LB070W02-TMJ2 | LG Display | 7.0 | 480×234 |
| PW070DS1T2 | E Ink | 7.0 | 480×234 |
| PW070DS1T6 | E Ink | 7.0 | 480×234 |
| TM056KDH01 | Tianma | 5.6 | 320×234 |
