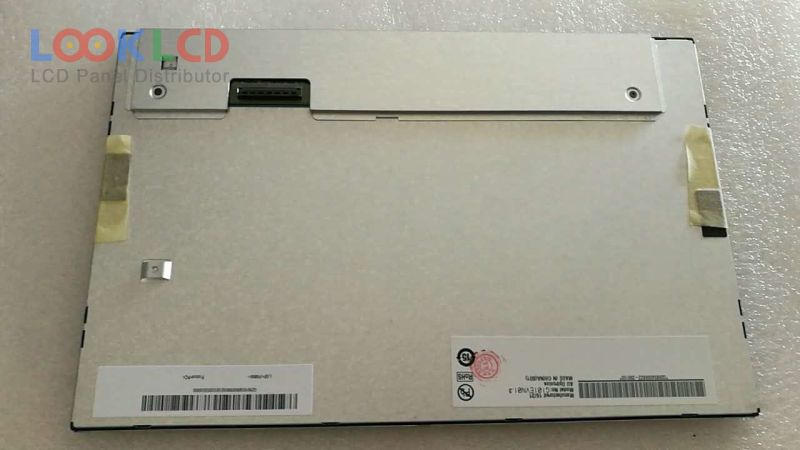

| Broj dijela | G101EVN01.3 |
| Marka | AUO |
| Veličina | 10.1 |
| Primjena | IA |
| Rezolucija | 1280×800 |
| Sastav | LCM |
| Svjetlina | 500 |
| CR | 1300:1 |
| Boje | 262K/16.7M |
| Pozadinsko osvjetljenje | WLED |
| Sučelje | LVDS |
| marka panela | AUO |
| panelni model | G101EVN01.3 |
| vrsta panela | a-Si TFT-LCD , LCM |
| veličina ploče | 10.1 inch |
| rezolucija | 1280(RGB)×800 , WXGA |
| način prikaza | MVA, Normally Black, Transmissive |
| aktivno područje | 216.96×135.6 mm |
| obris | 227.91×148×8.34 mm |
| površinski | Hard coating, Reflection 1.5% (Typ.) |
| svjetlina | 500 cd/m² (Typ.) |
| omjer kontrasta | 1300:1 (Typ.) |
| boje prikaza | 262K/16.7M (6-bit / 6-bit + FRC), CIE193145% |
| vrijeme odziva | 25 (Typ.)(Tr+Td) |
| kut gledanja | 85/85/85/85 (Typ.)(CR≥10)(L/R/U/D) |
| frekvencija | 60Hz |
| tip svjetiljke | WLEDEmbedded (LED Driver) |

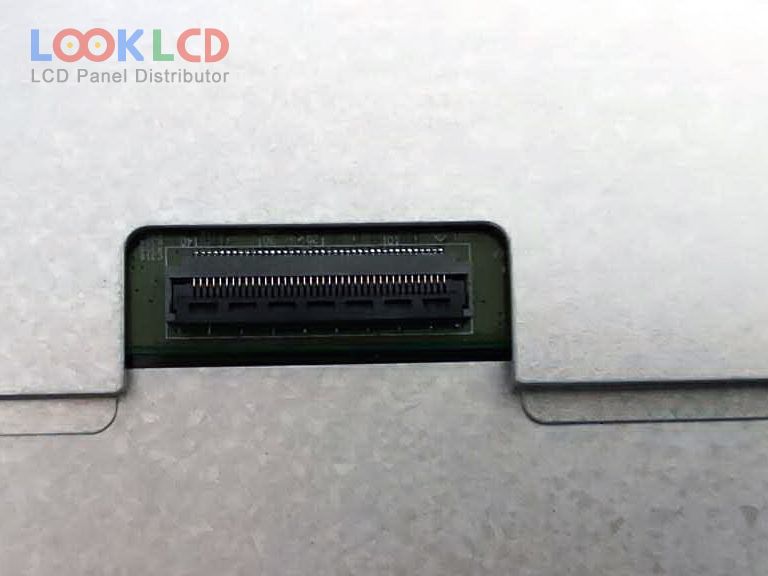

| signalno sučelje | LVDS (1 ch, 6/8-bit), 40 pins |
| ulazni napon | 3.3V (Typ.) |
| primjena | IA |
