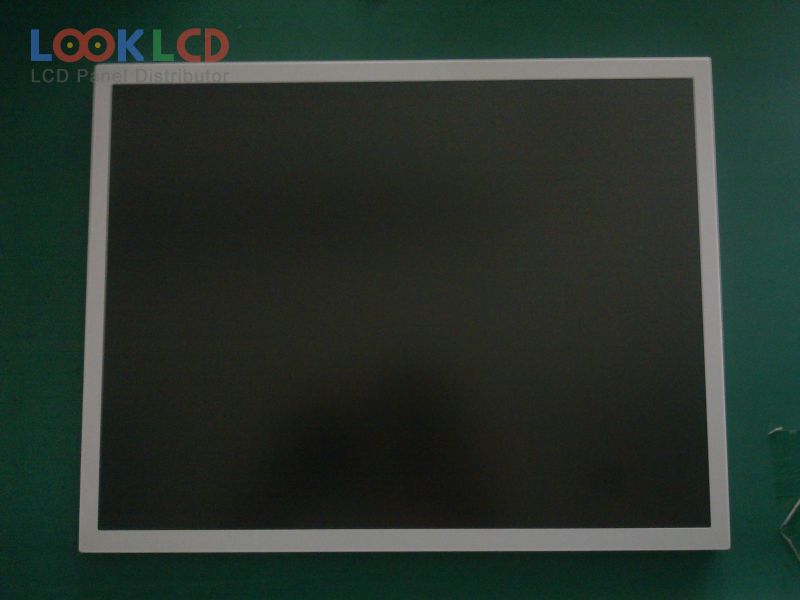

| Broj dijela | TM150TDSG52 |
| Marka | Tianma |
| Veličina | 15.0 |
| Primjena | IA |
| Rezolucija | 1024×768 |
| Sastav | LCM |
| Svjetlina | 250 |
| CR | 600:1 |
| Boje | 262K/16.7M |
| Pozadinsko osvjetljenje | WLED |
| Sučelje | LVDS |
| marka panela | AVIC |
| panelni model | TM150TDSG52 |
| vrsta panela | a-Si TFT-LCD , LCM |
| veličina ploče | 15.0 inch |
| rezolucija | 1024(RGB)×768 , XGA |
| način prikaza | TN, Normally White, Transmissive |
| aktivno područje | 304.128×228.096 mm |
| obris | 326.5×253.5×12.1 mm |
| površinski | Antiglare |
| svjetlina | 250 cd/m² (Typ.) |
| omjer kontrasta | 600:1 (Typ.) |
| boje prikaza | 262K/16.7M (6-bit / 6-bit + Hi-FRC), CIE193160% |
| vrijeme odziva | 3/5 (Typ.)(Tr/Td) |
| kut gledanja | 80/80/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| frekvencija | 60Hz |
| tip svjetiljke | WLEDEmbedded (LED Driver) |
| signalno sučelje | LVDS (1 ch, 6/8-bit), 20 pins |
| ulazni napon | 3.3V (Typ.) |
| primjena | IA |
