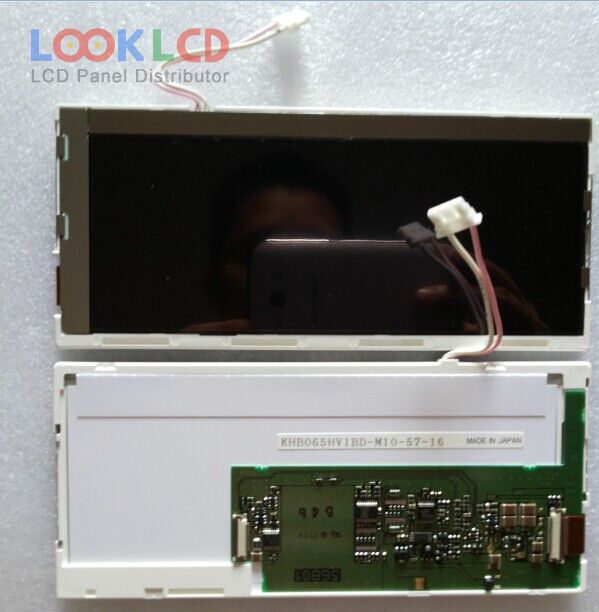

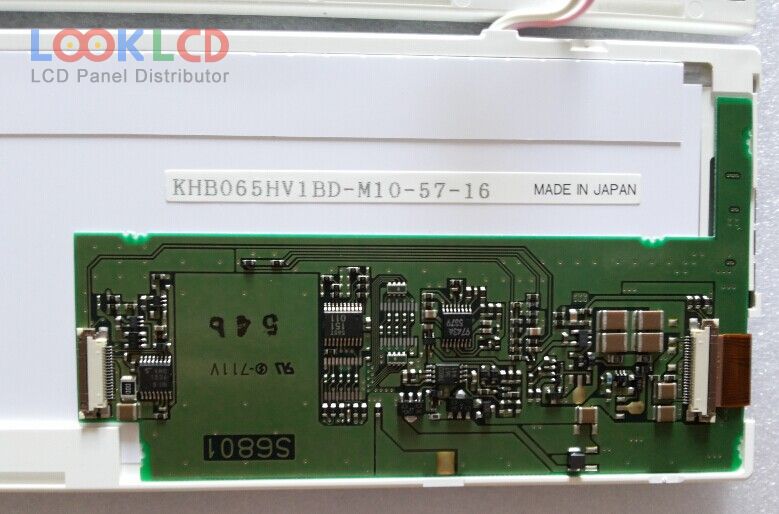

| Broj dijela | KHB065HV1BD-M10 |
| Marka | Kyocera |
| Veličina | 6.5 |
| Primjena | IA |
| Rezolucija | 640×240 |
| Sastav | LCM |
| Svjetlina | |
| CR | 15:1 |
| Boje | Color |
| Pozadinsko osvjetljenje | CCFL |
| Sučelje | Parallel Data |
| marka panela | Kyocera |
| panelni model | KHB065HV1BD-M10 |
| vrsta panela | CSTN-LCD , LCM |
| veličina ploče | 6.5 inch |
| rezolucija | 640(RGB)×240 , HVGA |
| način prikaza | STN, Normally Black, Transflective |
| aktivno područje | 153.58×57.58 mm |
| površinski | Glare (Haze 0%) |
| svjetlina | |
| omjer kontrasta | 15:1 (Typ.)(Transmissive)5:1 (Typ.)(Reflective) |
| boje prikaza | Color |
| vrijeme odziva | 200/150 (Typ.)(Tr/Td) |
| kut gledanja | 50/50/30/40 (Typ.)(CR≥2)(L/R/U/D) |
| tip svjetiljke | 1 pcsCCFL |
| signalno sučelje | Parallel Data (8-bit), 18 pins |
| ulazni napon | 3.3V (Typ.) |
| primjena | IA |
