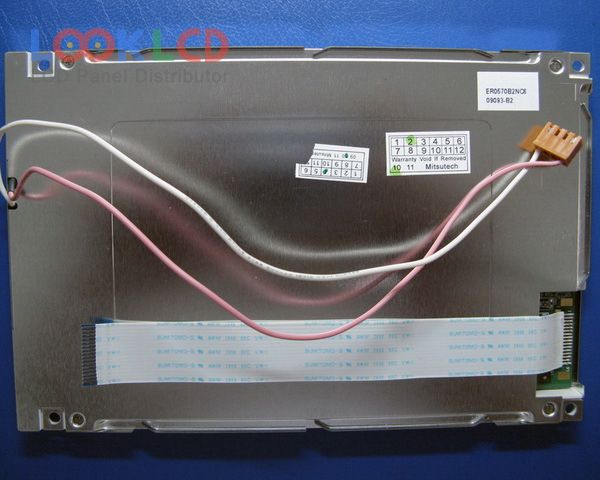

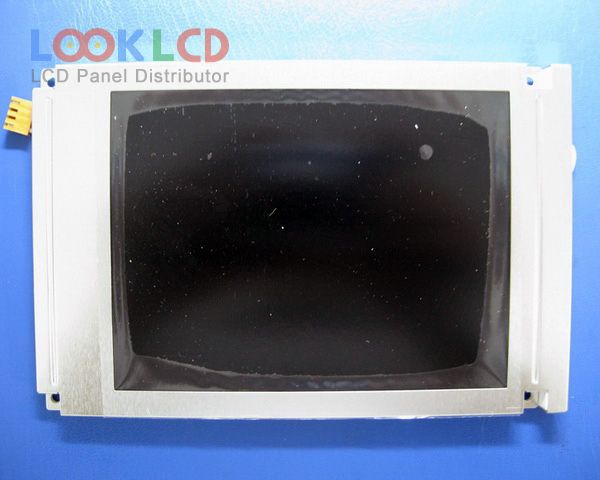

| Broj dijela | ER0570B2NC6 |
| Marka | EDT |
| Veličina | 5.7 |
| Primjena | IA |
| Rezolucija | 320×240 |
| Sastav | LCM |
| Svjetlina | 150 |
| CR | 50:1 |
| Boje | Color |
| Pozadinsko osvjetljenje | CCFL |
| Sučelje | Parallel Data |
| marka panela | EDT |
| panelni model | ER0570B2NC6 |
| vrsta panela | CSTN-LCD , LCM |
| veličina ploče | 5.7 inch |
| rezolucija | 320(RGB)×240 , QVGA |
| način prikaza | STN, Normally Black, Transmissive |
| aktivno područje | 115.17×86.37 mm |
| obris | 167×109×9.4 mm |
| površinski | |
| svjetlina | 150 cd/m² (Typ.) |
| omjer kontrasta | 50:1 (Typ.) |
| boje prikaza | Color |
| vrijeme odziva | 350/250 (Typ.)(Tr/Td) |
| kut gledanja | 40/40/20/40 (Min.)(CR≥2)(L/R/U/D) |
| frekvencija | 120Hz |
| tip svjetiljke | 1 pcsCCFLWithout Driver |
| signalno sučelje | Parallel Data (8-bit), 16 pins |
| ulazni napon | 3.3/5.0V (Typ.)(VDD) |
| primjena | IA |
