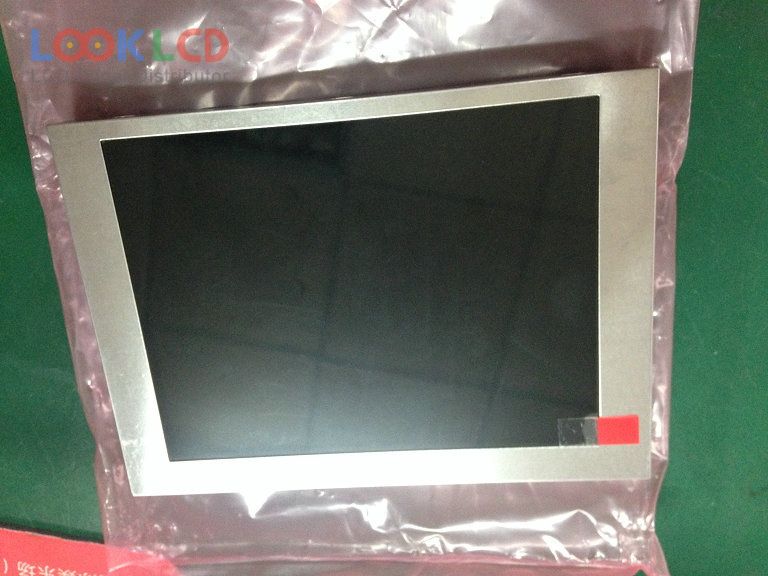

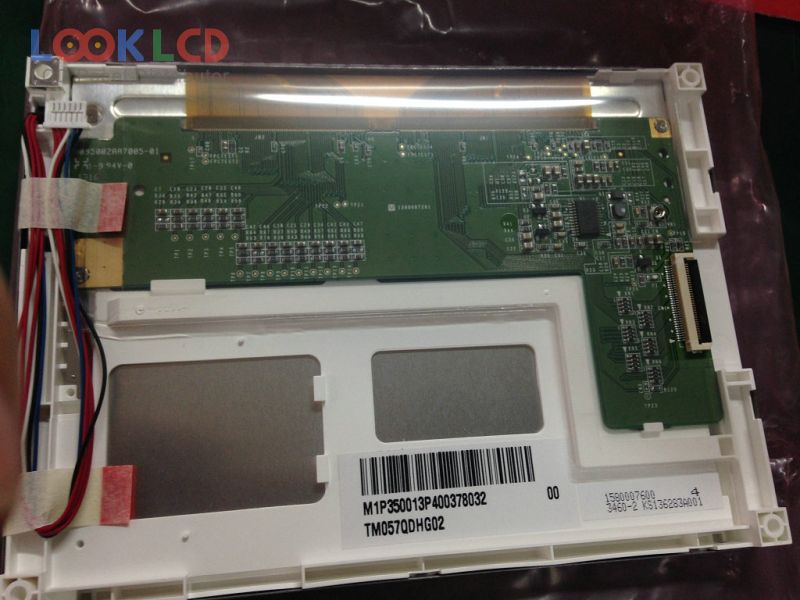

| Broj dijela | TM057QDHG02 |
| Marka | Tianma |
| Veličina | 5.7 |
| Primjena | IA |
| Rezolucija | 640×480 |
| Sastav | LCM |
| Svjetlina | |
| CR | 500:1 |
| Boje | 262K |
| Pozadinsko osvjetljenje | WLED |
| Sučelje | TTL |
| marka panela | TIANMA |
| panelni model | TM057QDHG02 |
| vrsta panela | a-Si TFT-LCD , LCM |
| veličina ploče | 5.7 inch |
| rezolucija | 640(RGB)×480 , VGA |
| način prikaza | TN, Normally White, Transmissive |
| aktivno područje | 115.2×86.4 mm |
| površinski | |
| svjetlina | |
| omjer kontrasta | 500:1 (Typ.) |
| boje prikaza | 262K (6-bit), CIE193150% |
| vrijeme odziva | 20 (Typ.)(Tr+Td) |
| kut gledanja | 70/70/70/60 (Typ.)(CR≥10)(L/R/U/D) |
| frekvencija | 60Hz |
| tip svjetiljke | WLEDEmbedded (LED Driver) |
| signalno sučelje | Parallel RGB (1 ch, 6-bit) |
| primjena | IA |
