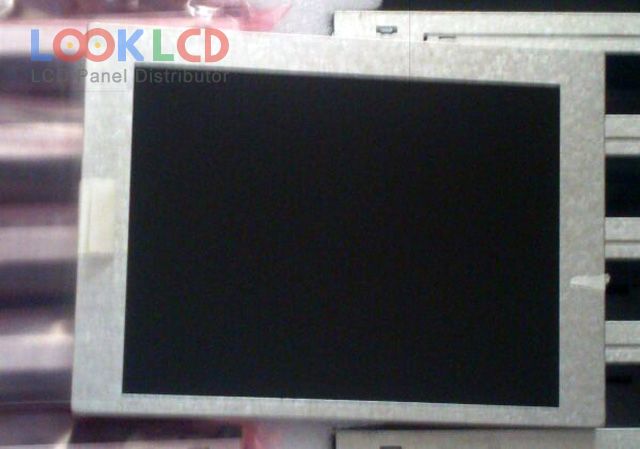

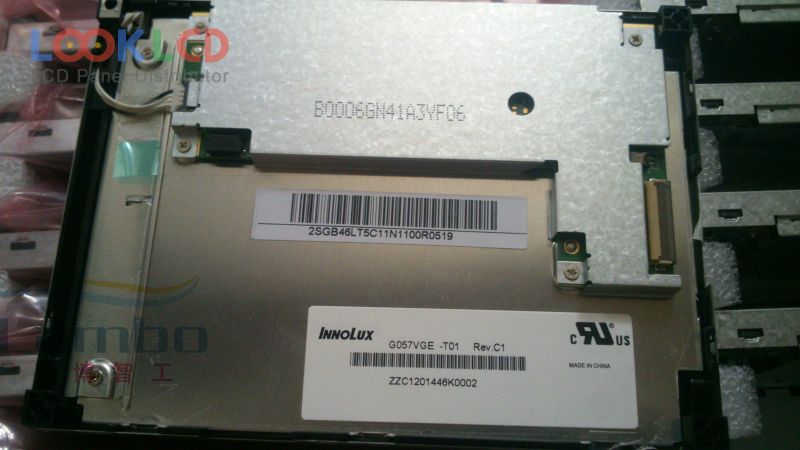

| Broj dijela | G057VGE-T01 |
| Marka | Innolux |
| Veličina | 5.7 |
| Primjena | IA |
| Rezolucija | 640×480 |
| Sastav | LCM |
| Svjetlina | 450 |
| CR | 800:1 |
| Boje | 262K |
| Pozadinsko osvjetljenje | WLED |
| Sučelje | TTL |
| marka panela | INNOLUX |
| panelni model | G057VGE-T01 |
| vrsta panela | a-Si TFT-LCD , LCM |
| veličina ploče | 5.7 inch |
| rezolucija | 640(RGB)×480 , VGA |
| način prikaza | TN, Normally White, Transmissive |
| aktivno područje | 115.2×86.4 mm |
| obris | 144×104.6×12.8 mm |
| površinski | Antiglare (Haze 25%) |
| svjetlina | 450 cd/m² (Typ.) |
| omjer kontrasta | 800:1 (Typ.) |
| boje prikaza | 262K (6-bit), CIE193154% |
| vrijeme odziva | 15/35 (Typ.)(Tr/Td) |
| kut gledanja | 80/80/70/70 (Typ.)(CR≥10)(L/R/U/D) |
| frekvencija | 60Hz |
| tip svjetiljke | WLEDEmbedded (LED Driver) |
| signalno sučelje | TTL (1 ch, 6-bit), 33 pins |
| ulazni napon | 3.3V (Typ.) |
| primjena | IA |
