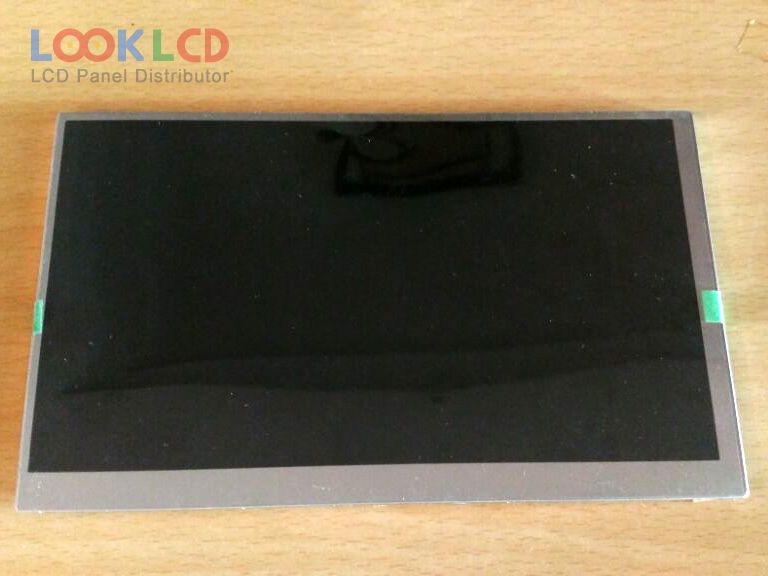

| Broj dijela | CLAA070LF06CW |
| Marka | CPT |
| Veličina | 7.0 |
| Primjena | CNS |
| Rezolucija | 800×480 |
| Sastav | LCM |
| Svjetlina | 500 |
| CR | 400:1 |
| Boje | 16.2M |
| Pozadinsko osvjetljenje | WLED |
| Sučelje | TTL |
| marka panela | CPT |
| panelni model | CLAA070LF06CW |
| vrsta panela | a-Si TFT-LCD , LCM |
| veličina ploče | 7.0 inch |
| rezolucija | 800(RGB)×480 , WVGA |
| način prikaza | TN, Normally White, Transmissive |
| aktivno područje | 154.08×85.92 mm |
| obris | 164.9×100×4.52 mm |
| površinski | Antiglare |
| svjetlina | 500 cd/m² (Typ.) |
| omjer kontrasta | 400:1 (Typ.) |
| boje prikaza | 16.2M (6-bit + FRC), CIE193150% |
| vrijeme odziva | 25 (Typ.)(Tr+Td) |
| kut gledanja | 70/70/50/70 (Typ.)(CR≥10)(L/R/U/D) |
| frekvencija | 60Hz |
| tip svjetiljke | 9S3PWLEDWithout Driver |
| signalno sučelje | TTL (1 ch, 8-bit), 67 pins |
| ulazni napon | 3.3/9.6/18.0/-6 (Typ.)(DVDD/AVDD/VGH/VGL) |
| primjena | CNS |
