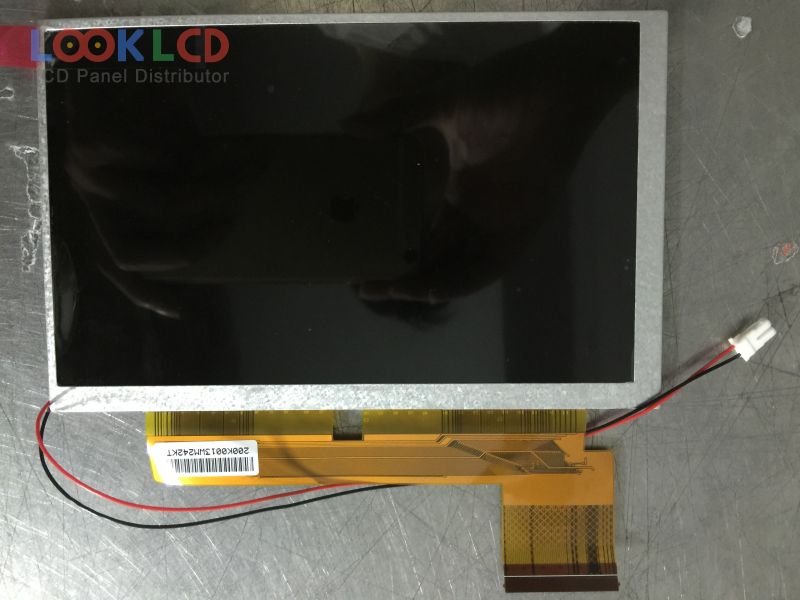

| Broj dijela | CLAA070LH01AW |
| Marka | CPT |
| Veličina | 7.0 |
| Primjena | CNS |
| Rezolucija | 800×480 |
| Sastav | LCM |
| Svjetlina | 600 |
| CR | 800:1 |
| Boje | 262K |
| Pozadinsko osvjetljenje | WLED |
| Sučelje | TTL |
| marka panela | CPT |
| panelni model | CLAA070LH01AW |
| vrsta panela | a-Si TFT-LCD , LCM |
| veličina ploče | 7.0 inch |
| rezolucija | 800(RGB)×480 , WVGA |
| način prikaza | TN, Normally White, Transmissive |
| aktivno područje | 152.4×91.44 mm |
| obris | 165×104×7.55 mm |
| površinski | Antiglare, Reflection 4.0% (Typ.) |
| svjetlina | 600 cd/m² (Typ.) |
| omjer kontrasta | 800:1 (Typ.) |
| boje prikaza | 262K (6-bit), CIE193150% |
| vrijeme odziva | 40 (Max.)(Tr+Td) |
| kut gledanja | 55/55/60/30 (Min.)(CR≥10)(L/R/U/D) |
| frekvencija | 60Hz |
| tip svjetiljke | 7S2PWLEDWithout Driver |
| signalno sučelje | TTL (1 ch, 6-bit), 60 pins |
| ulazni napon | 3.3/13.0/18.0/-6.0V (Typ.)(DVDD/AVDD/VGH/VGL) |
| primjena | CNS |
