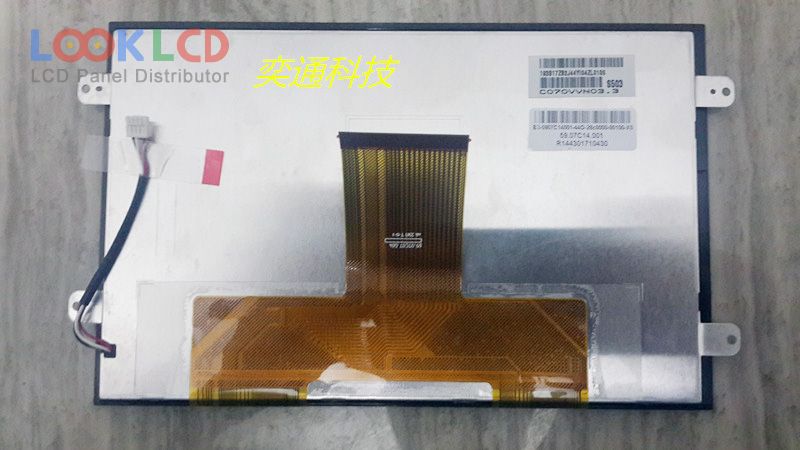

| Broj dijela | C070VVN03.3 |
| Marka | AUO |
| Veličina | 7.0 |
| Primjena | CNS |
| Rezolucija | 800×480 |
| Sastav | LCM |
| Svjetlina | |
| CR | 600:1 |
| Boje | 262K |
| Pozadinsko osvjetljenje | WLED |
| Sučelje | TTL |
| marka panela | AUO |
| panelni model | C070VVN03.3 |
| vrsta panela | a-Si TFT-LCD , LCM |
| veličina ploče | 7.0 inch |
| rezolucija | 800(RGB)×480 , WVGA |
| način prikaza | AMVA, Normally Black, Transmissive |
| aktivno područje | 152.4×91.44 mm |
| površinski | |
| svjetlina | |
| omjer kontrasta | 600:1 (Typ.) |
| boje prikaza | 262K (6-bit) |
| vrijeme odziva | 15/25 (Typ.)(Tr/Td) |
| kut gledanja | 80/80/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| frekvencija | 60Hz |
| tip svjetiljke | WLEDWithout Driver |
| signalno sučelje | Parallel RGB (1 ch, 6-bit) |
| primjena | CNS |
