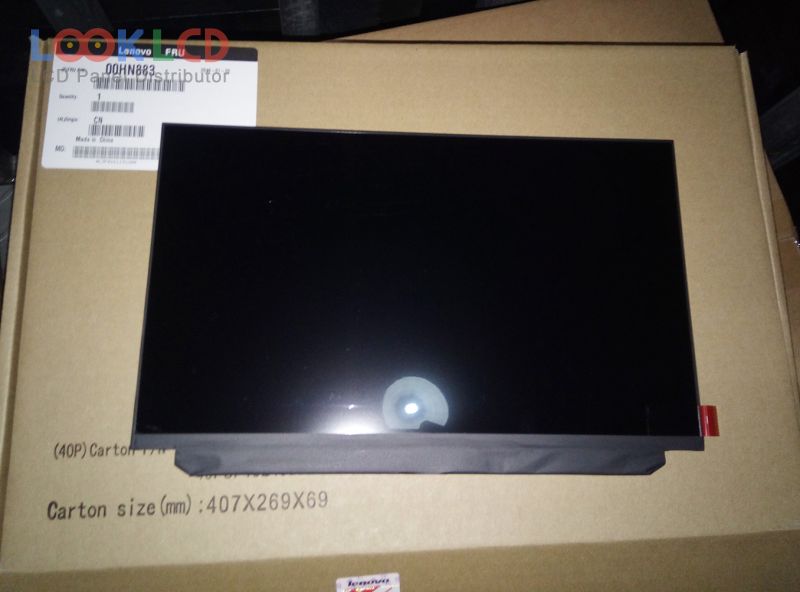

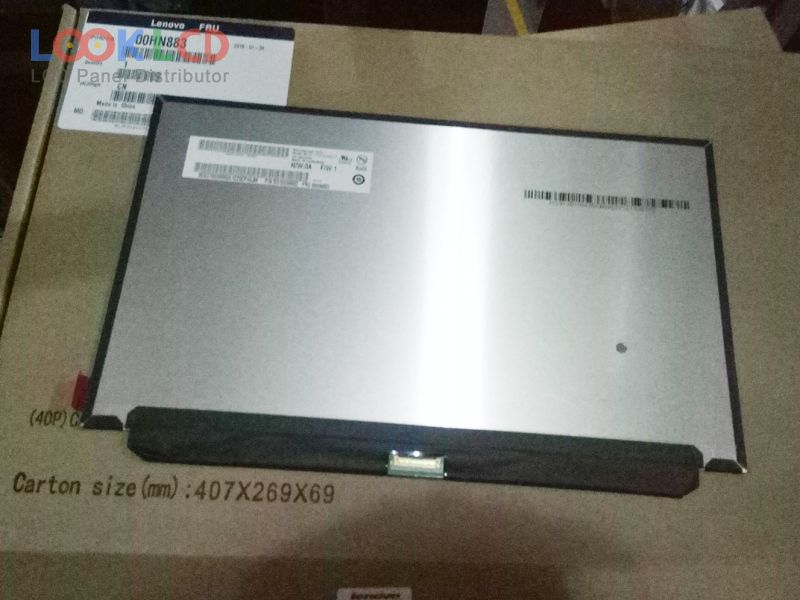

| Broj dijela | B125HAN02.2 |
| Marka | AUO |
| Veličina | 12.5 |
| Primjena | NBPC |
| Rezolucija | 1920×1080 |
| Sastav | LCM |
| Svjetlina | 300 |
| CR | 700:1 |
| Boje | 16.7M |
| Pozadinsko osvjetljenje | WLED |
| Sučelje | eDP |
| marka panela | AUO |
| panelni model | B125HAN02.2 |
| vrsta panela | a-Si TFT-LCD , LCM |
| veličina ploče | 12.5 inch |
| rezolucija | 1920(RGB)×1080 , FHD |
| način prikaza | AHVA, Normally Black, Transmissive |
| aktivno područje | 276.48×155.52 mm |
| obris | 282.4×179.32×2.5 mm |
| stil oblika | Slim (PCBA Flat, Depth ≤3.2mm) |
| površinski | Antiglare |
| svjetlina | 300 cd/m² (Typ.) |
| omjer kontrasta | 700:1 (Typ.) |
| boje prikaza | 16.7M (8-bit), CIE193150% |
| vrijeme odziva | 25 (Typ.)(Tr+Td) |
| kut gledanja | 85/85/85/85 (Typ.)(CR≥10)(L/R/U/D) |
| frekvencija | 60Hz |
| tip svjetiljke | WLEDEmbedded (LED Driver) |
| signalno sučelje | eDP (2 Lanes), 30 pins |
| ulazni napon | 3.3V (Typ.) |
| primjena | NBPC |
