| Broj dijela | LTN141XF-L03 |
| Marka | Samsung |
| Veličina | 14.1 |
| Primjena | NBPC |
| Rezolucija | 1024×768 |
| Sastav | LCM |
| Svjetlina | 150 |
| CR | 250:1 |
| Boje | 262K |
| Pozadinsko osvjetljenje | CCFL |
| Sučelje | LVDS |
| marka panela | SAMSUNG |
| panelni model | LTN141XF-L03 3 Compatible model |
| vrsta panela | a-Si TFT-LCD , LCM |
| veličina ploče | 14.1 inch |
| rezolucija | 1024(RGB)×768 , XGA |
| način prikaza | TN, Normally White, Transmissive |
| aktivno područje | 285.696×214.272 mm |
| obris | 298.5×226.5×5.8 mm |
| stil oblika | Wedge (PCBA Bent, Depth ≥5.2mm) |
| površinski | Antiglare (Haze 25%), Hard coating (3H) |
| svjetlina | 150 cd/m² (Typ.) |
| omjer kontrasta | 250:1 (Typ.) |
| boje prikaza | 262K (6-bit) |
| vrijeme odziva | 10/30 (Typ.)(Tr/Td) |
| kut gledanja | 45/45/15/35 (Min.)(CR≥10)(L/R/U/D) |
| frekvencija | 60Hz |
| tip svjetiljke | 1 pcsCCFLWithout Driver |

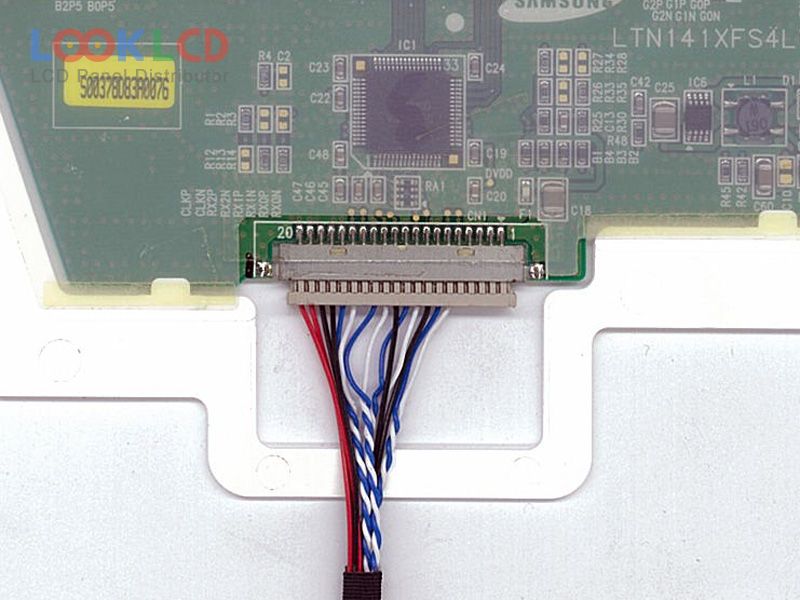

| signalno sučelje | LVDS (1 ch, 6-bit), 20 pins |
| ulazni napon | 3.3V (Typ.) |
| primjena | NBPC |
