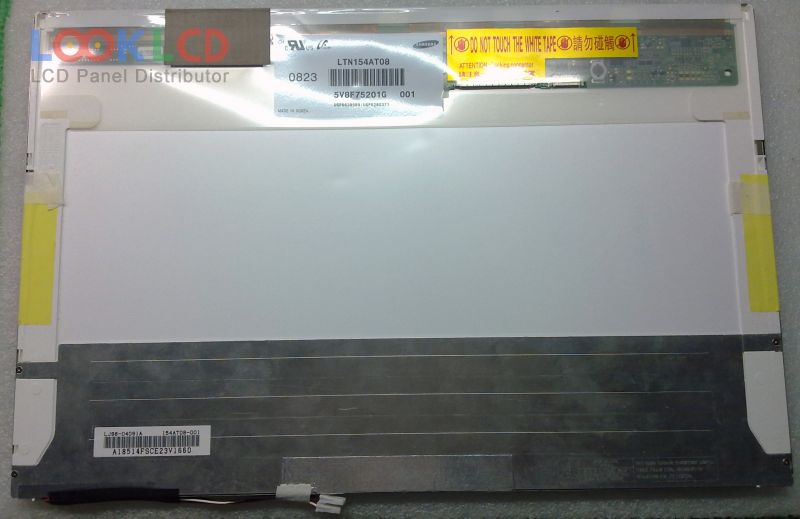

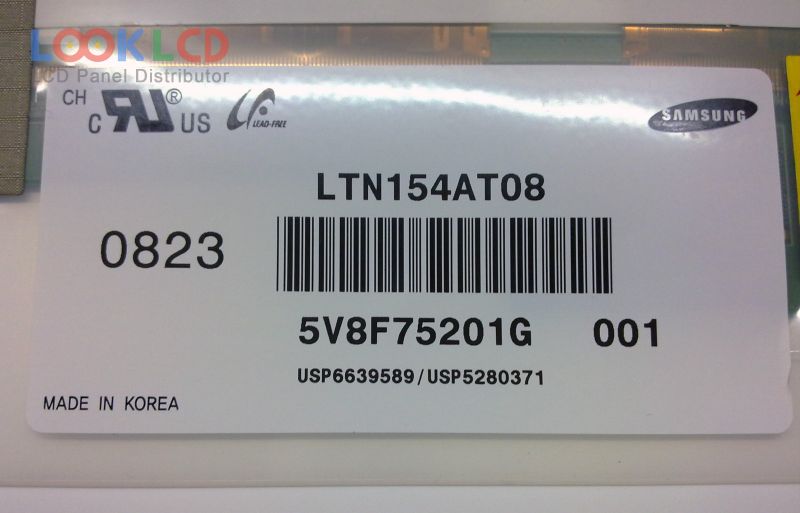

| Broj dijela | LTN154AT08-001 |
| Marka | Samsung |
| Veličina | 15.4 |
| Primjena | NBPC |
| Rezolucija | 1280×800 |
| Sastav | LCM |
| Svjetlina | 300 |
| CR | 600:1 |
| Boje | 262K |
| Pozadinsko osvjetljenje | CCFL |
| Sučelje | LVDS |
| marka panela | SAMSUNG |
| panelni model | LTN154AT08-001 3 Compatible model |
| vrsta panela | a-Si TFT-LCD , LCM |
| veličina ploče | 15.4 inch |
| rezolucija | 1280(RGB)×800 , WXGA |
| način prikaza | TN, Normally White, Transmissive |
| aktivno područje | 331.2×207 mm |
| obris | 344×225×7 mm |
| stil oblika | Wedge (PCBA Bent, Depth ≥5.2mm) |
| površinski | Glare (Haze 0%), Hard coating (3H), Reflection 2.0% (Max.) |
| svjetlina | 300 cd/m² (Typ.) |
| omjer kontrasta | 600:1 (Typ.) |
| boje prikaza | 262K (6-bit), CIE193172% |
| vrijeme odziva | 16 (Typ.)(Tr+Td) |
| kut gledanja | 45/45/15/35 (Typ.)(CR≥10)(L/R/U/D) |
| frekvencija | 60Hz |
| tip svjetiljke | 2 pcsCCFLWithout Driver |
| signalno sučelje | LVDS (1 ch, 6-bit), 30 pins |
| ulazni napon | 3.3V (Typ.) |
| primjena | NBPC |
| LTN154AT01-A01 | Samsung | 15.4 | 1280×800 |
| LTN154AT01-A03 | Samsung | 15.4 | 1280×800 |
| LTN154AT07-H01 | Samsung | 15.4 | 1280×800 |
| LTN154AT07-L01 | Samsung | 15.4 | 1280×800 |
| LTN154AT08-001 | Samsung | 15.4 | 1280×800 |
| LTN154AT09-101 | Samsung | 15.4 | 1280×800 |
| LTN154AT09-102 | Samsung | 15.4 | 1280×800 |
| LTN154AT09-201 | Samsung | 15.4 | 1280×800 |
| LTN154AT12-D01 | Samsung | 15.4 | 1280×800 |
| LTN154AT13-701 | Samsung | 15.4 | 1280×800 |
| B173RW01 V1 | AUO | 17.3 | 1600×900 |
| LP156WD1-TLD5 | LG Display | 15.6 | 1600×900 |
| LP156WH3-TLC1 | LG Display | 15.6 | 1366×768 |
| LP156WH4-TPA1 | LG Display | 15.6 | 1366×768 |
| LP171WE2-TLA2 | LG Display | 17.1 | 1680×1050 |
| LTD106EXXF | TOSHIBA | 10.6 | 1280×768 |
| LTN141WD-L05 | Samsung | 14.1 | 1440×900 |
| LTN170BT11-D03 | Samsung | 17.0 | 1440×900 |
| N121I6-L01 | Innolux | 12.1 | 1280×800 |
| N140BGK-L33 | Innolux | 14.0 | 1366×768 |
