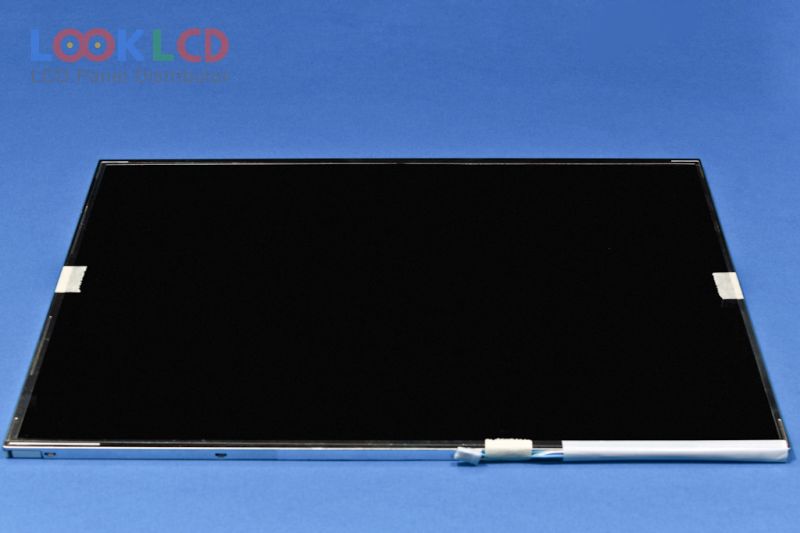

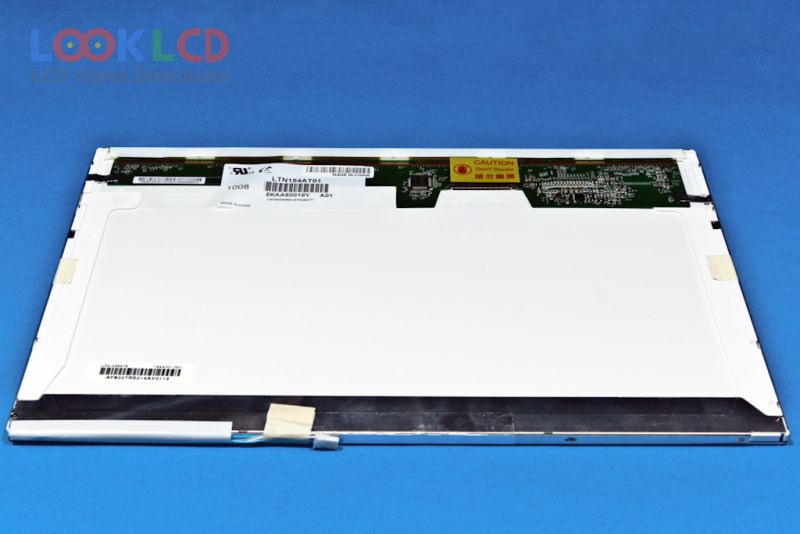

| Broj dijela | LTN154AT01-A01 |
| Marka | Samsung |
| Veličina | 15.4 |
| Primjena | NBPC |
| Rezolucija | 1280×800 |
| Sastav | LCM |
| Svjetlina | 220 |
| CR | 300:1 |
| Boje | 262K |
| Pozadinsko osvjetljenje | CCFL |
| Sučelje | LVDS |
| marka panela | SAMSUNG |
| panelni model | LTN154AT01-A01 |
| vrsta panela | a-Si TFT-LCD , LCM |
| veličina ploče | 15.4 inch |
| rezolucija | 1280(RGB)×800 , WXGA |
| način prikaza | TN, Normally White, Transmissive |
| aktivno područje | 331.2×207 mm |
| obris | 344×222×6.5 mm |
| stil oblika | Wedge (PCBA Bent, Depth ≥5.2mm) |
| površinski | Glare (Haze 0%), Hard coating (3H) |
| svjetlina | 220 cd/m² (Typ.) |
| omjer kontrasta | 300:1 (Min.) |
| boje prikaza | 262K (6-bit) |
| vrijeme odziva | 8 (Typ.)(Tr+Td) |
| kut gledanja | 45/45/15/30 (Typ.)(CR≥10)(L/R/U/D) |
| frekvencija | 60Hz |
| tip svjetiljke | 1 pcsCCFLWithout Driver |
| signalno sučelje | LVDS (1 ch, 6-bit), 30 pins |
| ulazni napon | 3.3V (Typ.) |
| primjena | NBPC |
| LTN154AT01-A01 | Samsung | 15.4 | 1280×800 |
| LTN154AT01-A03 | Samsung | 15.4 | 1280×800 |
| LTN154AT07-H01 | Samsung | 15.4 | 1280×800 |
| LTN154AT07-L01 | Samsung | 15.4 | 1280×800 |
| LTN154AT08-001 | Samsung | 15.4 | 1280×800 |
| LTN154AT09-101 | Samsung | 15.4 | 1280×800 |
| LTN154AT09-102 | Samsung | 15.4 | 1280×800 |
| LTN154AT09-201 | Samsung | 15.4 | 1280×800 |
| LTN154AT12-D01 | Samsung | 15.4 | 1280×800 |
| LTN154AT13-701 | Samsung | 15.4 | 1280×800 |
| B121EW03 V3 | AUO | 12.1 | 1280×800 |
| B133EW01 V0 | AUO | 13.3 | 1280×800 |
| HB140WH1-504 | BOE | 14.0 | 1366×768 |
| LP173WF1-TLA2 | LG Display | 17.3 | 1920×1080 |
| LQ141X1LH03 | SHARP | 14.1 | 1024×768 |
| LT133EE09400 | TOSHIBA | 13.3 | 1366×768 |
| LTN170CT08-D01 | Samsung | 17.0 | 1920×1200 |
| N140FGE-EA2 | Innolux | 14.0 | 1600×900 |
| N140HGE-EAA | Innolux | 14.0 | 1920×1080 |
| TM121XG-02L01 | SANYO | 12.1 | 1024×768 |
