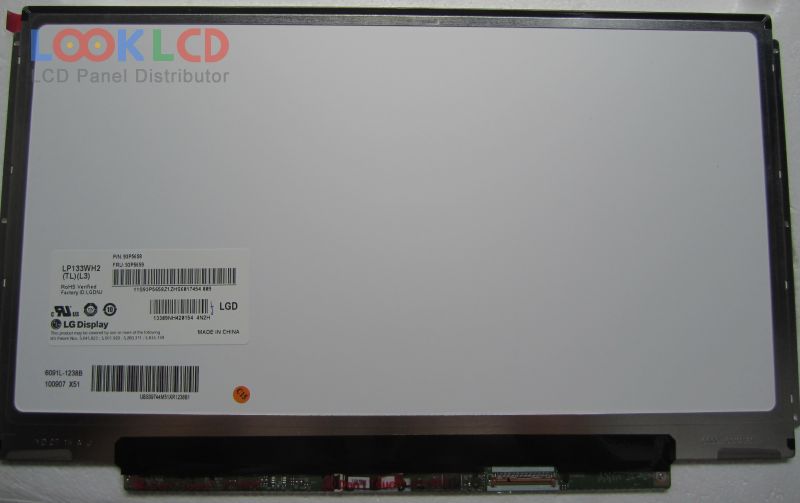

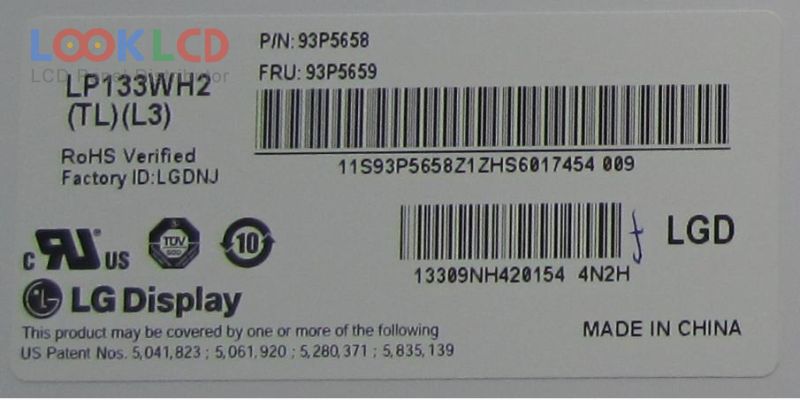

| Broj dijela | LP133WH2-TLL3 |
| Marka | LG Display |
| Veličina | 13.3 |
| Primjena | NBPC |
| Rezolucija | 1366×768 |
| Sastav | LCM |
| Svjetlina | 200 |
| CR | 500:1 |
| Boje | 262K |
| Pozadinsko osvjetljenje | WLED |
| Sučelje | LVDS |
| marka panela | LG Display |
| panelni model | LP133WH2-TLL3 3 Compatible model |
| vrsta panela | a-Si TFT-LCD , LCM |
| veličina ploče | 13.3 inch |
| rezolucija | 1366(RGB)×768 , WXGA |
| način prikaza | TN, Normally White, Transmissive |
| aktivno područje | 293.42×164.97 mm |
| obris | 314.1×188.7×3.6 mm |
| stil oblika | Flat (PCBA Flat, Depth 3.4~4.0mm) |
| površinski | Glare (Haze 0%), Hard coating (3H) |
| svjetlina | 200 cd/m² (Typ.) |
| omjer kontrasta | 500:1 (Typ.) |
| boje prikaza | 262K (6-bit), CIE193145% |
| vrijeme odziva | 16 (Typ.)(Tr+Td) |
| kut gledanja | 40/40/10/30 (Min.)(CR≥10)(L/R/U/D) |
| frekvencija | 60Hz |
| tip svjetiljke | 9S4PWLEDEmbedded (LED Driver) |

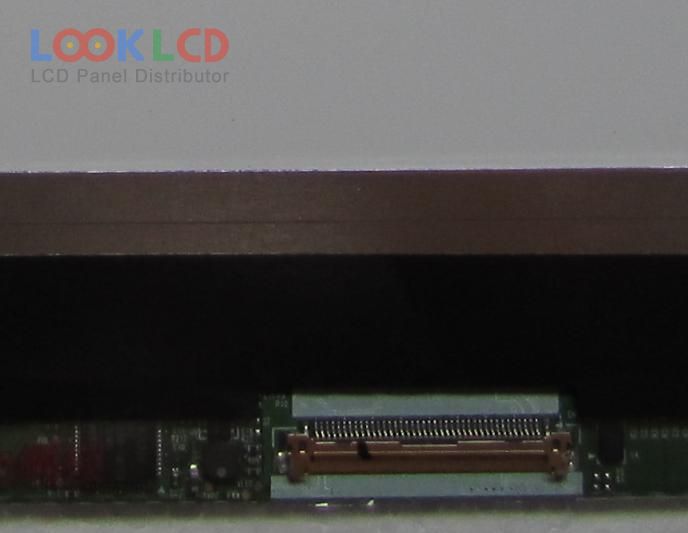

| signalno sučelje | LVDS (1 ch, 6-bit), 40 pins |
| ulazni napon | 3.3V (Typ.) |
| primjena | NBPC |
