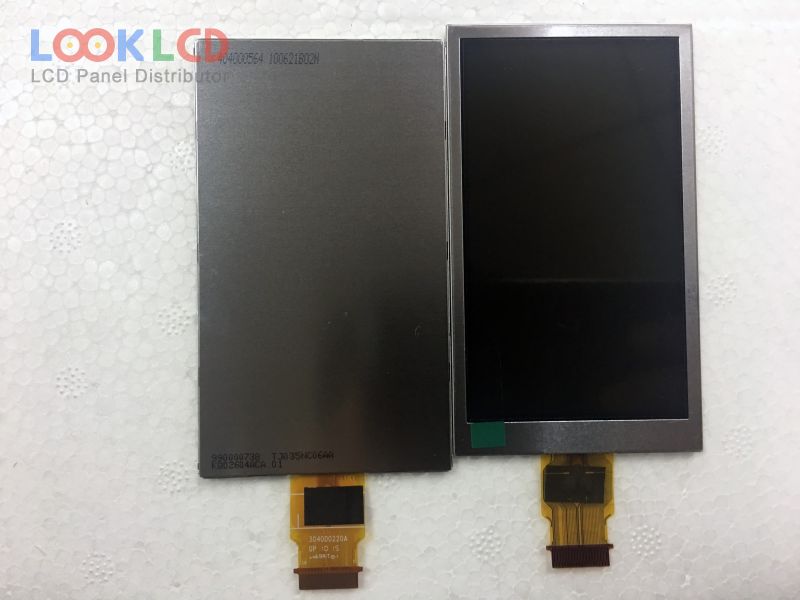

| Broj dijela | 990000738 |
| Marka | TPO |
| Veličina | 3.5 |
| Primjena | DSC |
| Rezolucija | 320×240 |
| Sastav | LCM |
| Svjetlina | 350 |
| CR | 500:1 |
| Boje | 16.7M |
| Pozadinsko osvjetljenje | WLED |
| Sučelje | Serial RGB |
| marka panela | TPO |
| panelni model | 990000738 |
| vrsta panela | LTPS TFT-LCD , LCM |
| veličina ploče | 3.5 inch |
| rezolucija | 320(RGB)×240 , QVGA |
| način prikaza | TN, Normally White, Transmissive |
| aktivno područje | 76.84×43.2 mm |
| obris | 89.5×51.76×2.9 mm |
| površinski | Hard coating (3H) |
| svjetlina | 350 cd/m² (Typ.) |
| omjer kontrasta | 500:1 (Typ.) |
| boje prikaza | 16.7M (8-bit), CIE193140% |
| vrijeme odziva | 5/11 (Typ.)(Tr/Td) |
| kut gledanja | 60/60/55/60 (Typ.)(CR≥10)(L/R/U/D) |
| tip svjetiljke | 4S1PWLEDWithout Driver |
| signalno sučelje | Serial RGB (8-bit) + SPI, 39 pins |
| ulazni napon | 3.3V (Typ.) |
| primjena | DSC |
| 990000006 | TPO | 3.0 | 320×240 |
| 990000270 | TPO | 2.5 | 320×240 |
| 990000475 | TPO | 4.3 | 800×480 |
| 990000475P | TPO | 4.3 | 800×480 |
| 990000553 | TPO | 3.5 | 320×240 |
| 990000738 | TPO | 3.5 | 320×240 |
| 990000738A | Innolux | 3.5 | 320×240 |
| 990000881 | TPO | 3.0 | 960×480(dot) |
| 990001086 | Innolux | 3.0 | |
| A035VL01 V3 | AUO | 3.5 | 800×480 |
| A025DL02 V5 | AUO | 2.5 | 320×240 |
| A027DN03 V2 | AUO | 2.7 | 320×240 |
| A030DW01 V0 | AUO | 3.0 | 320×240 |
| A030DW01 V3 | AUO | 3.0 | 320×240 |
| ACX385AKM-7 | SONY | 2.5 | 640×240 |
| LQ035JC211 | Innolux | 3.5 | 320×240 |
| LTV350QV-F04 | Samsung | 3.5 | 320×240 |
| PD035OX4 | E Ink | 3.5 | 320×234 |
| TD025THEE6 | TPO | 2.5 | 640×240 |
| TM030CDH51-00 | Tianma | 3.0 | 320×240 |
