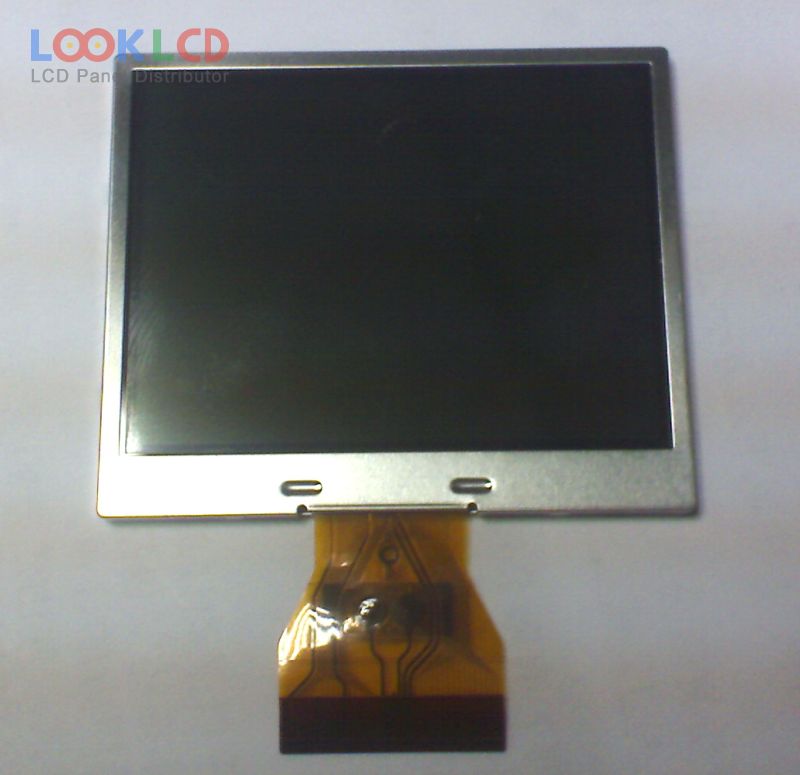

| Broj dijela | 990000270 |
| Marka | TPO |
| Veličina | 2.5 |
| Primjena | DSC |
| Rezolucija | 320×240 |
| Sastav | LCM |
| Svjetlina | 250 |
| CR | 300:1 |
| Boje | 16.7M |
| Pozadinsko osvjetljenje | WLED |
| Sučelje | Serial RGB |
| marka panela | TPO |
| panelni model | 990000270 |
| vrsta panela | LTPS TFT-LCD , LCM |
| veličina ploče | 2.5 inch |
| rezolucija | 320(RGB)×240 , QVGA |
| način prikaza | TN, Normally White, Transmissive |
| aktivno područje | 49.946×37.56 mm |
| obris | 56.2×47.8 mm |
| površinski | Hard coating |
| svjetlina | 250 cd/m² (Typ.) |
| omjer kontrasta | 300:1 (Typ.) |
| boje prikaza | 16.7M (8-bit) |
| vrijeme odziva | 5/11 (Typ.)(Tr/Td) |
| kut gledanja | 40/40/20/50 (Typ.)(CR≥10)(L/R/U/D) |
| tip svjetiljke | 1 pcsWLEDWithout Driver |
| signalno sučelje | Serial RGB (8-bit) + SPI, CCIR601, 40 pins |
| ulazni napon | 3.3V (Typ.) |
| primjena | DSC |
| 990000006 | TPO | 3.0 | 320×240 |
| 990000270 | TPO | 2.5 | 320×240 |
| 990000475 | TPO | 4.3 | 800×480 |
| 990000475P | TPO | 4.3 | 800×480 |
| 990000553 | TPO | 3.5 | 320×240 |
| 990000738 | TPO | 3.5 | 320×240 |
| 990000738A | Innolux | 3.5 | 320×240 |
| 990000881 | TPO | 3.0 | 960×480(dot) |
| 990001086 | Innolux | 3.0 | |
| ACX385AKM-7 | SONY | 2.5 | 640×240 |
| A015AN03 | AUO | 1.46 | 280×220 |
| A024CN03 V2 | AUO | 2.4 | 480×234 |
| A027DTN01.2 | AUO | 2.7 | 320×240 |
| A035VL01 V6 | AUO | 3.5 | 800×480 |
| DLC0350CZG-T | Other | 3.5 | 320×240 |
| LQ035Q1DH02 | SHARP | 3.5 | 320×240 |
| LTV350QV-F05 | Samsung | 3.5 | 320×240 |
| TD020THEG1 | TPO | 2.0 | 640×240 |
| TD030MHEB3 | TPO | 3.0 | 320×240 |
| TD030WHEA1 | TPO | 3.0 | 320×240 |
