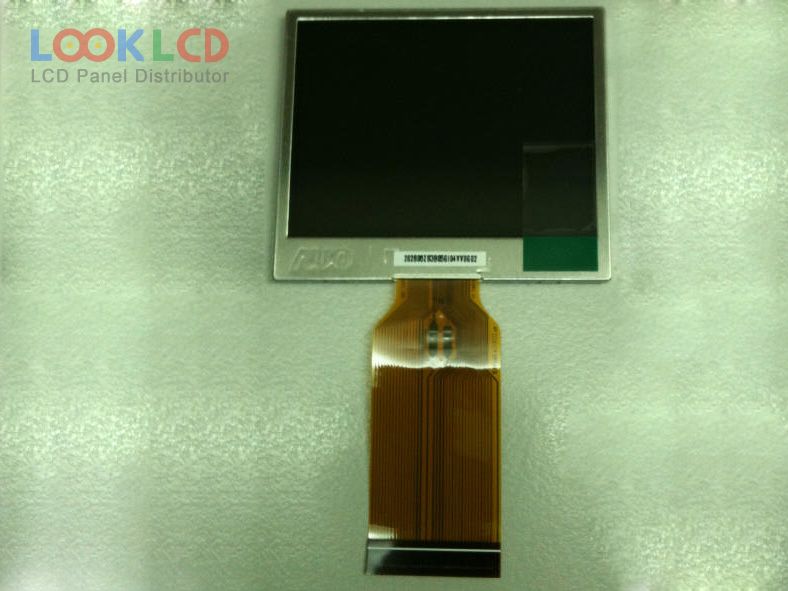

| Broj dijela | A024CN03 V2 |
| Marka | AUO |
| Veličina | 2.4 |
| Primjena | DSC |
| Rezolucija | 480×234 |
| Sastav | LCM |
| Svjetlina | 250 |
| CR | 250:1 |
| Boje | 16.7M |
| Pozadinsko osvjetljenje | WLED |
| Sučelje | Serial RGB |
| marka panela | AUO |
| panelni model | A024CN03 V2 |
| vrsta panela | a-Si TFT-LCD , LCM |
| veličina ploče | 2.4 inch |
| rezolucija | 480×234 |
| način prikaza | TN, Normally White, Transmissive |
| aktivno područje | 48×35.685 mm |
| obris | 54.9×47.45 mm |
| površinski | Hard coating |
| svjetlina | 250 cd/m² (Typ.) |
| omjer kontrasta | 250:1 (Typ.) |
| boje prikaza | 16.7M (8-bit) |
| vrijeme odziva | 20/30 (Typ.)(Tr/Td) |
| kut gledanja | 45/45/15/35 (Typ.)(CR≥10)(L/R/U/D) |
| tip svjetiljke | WLED |
| signalno sučelje | Serial RGB (8-bit) + SPI, CCIR656, 40 pins |
| ulazni napon | 3.3/3.3/12.5/-12.5V (Typ.)(VCC/PVDD/VGH/VGL) |
| rohs: | |
| primjena | DSC |
