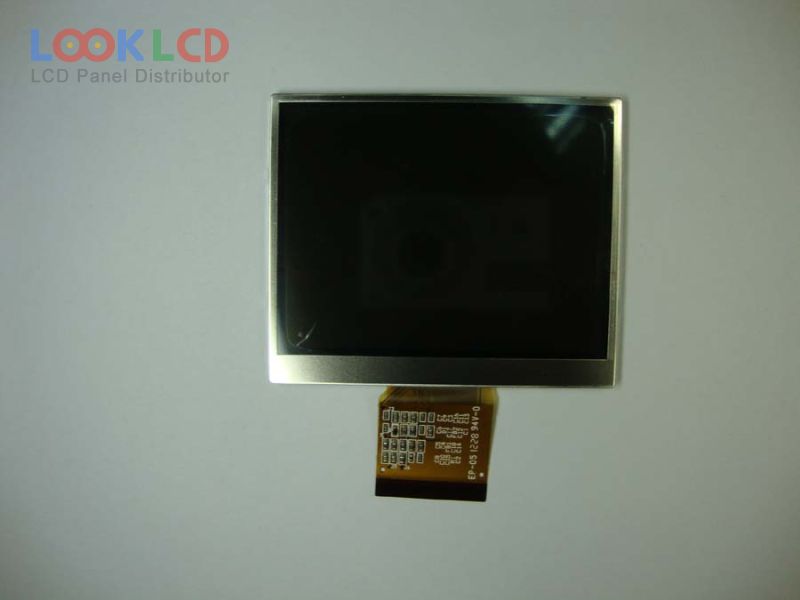

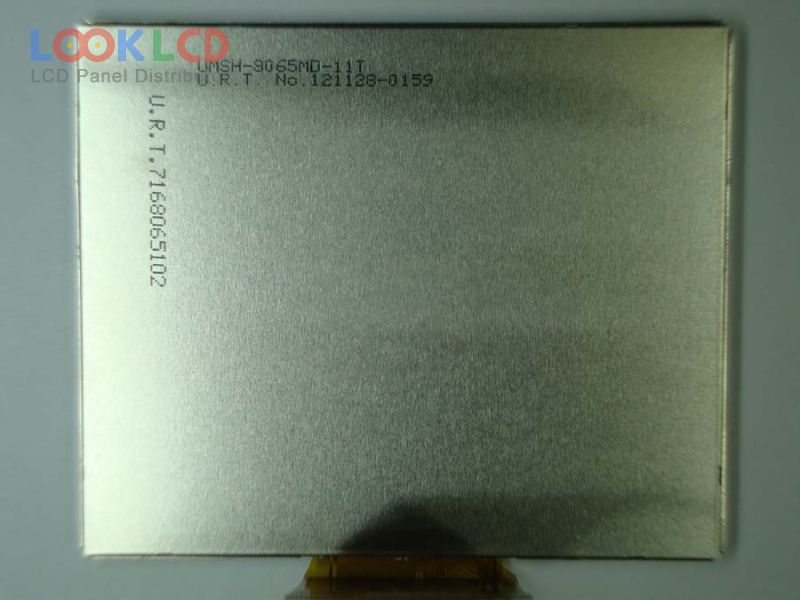

| Broj dijela | UMSH-8065MD-11T |
| Marka | Other |
| Veličina | 3.5 |
| Primjena | IA |
| Rezolucija | 320×240 |
| Sastav | LCM |
| Svjetlina | 700 |
| CR | 800:1 |
| Boje | 262K |
| Pozadinsko osvjetljenje | WLED |
| Sučelje | Parallel/Serial |
| marka panela | URT |
| panelni model | UMSH-8065MD-11T |
| vrsta panela | a-Si TFT-LCD , LCM |
| veličina ploče | 3.5 inch |
| rezolucija | 320(RGB)×240 , QVGA |
| način prikaza | TN, Normally White, Transmissive |
| aktivno područje | 70.08×52.56 mm |
| obris | 76.9×63.9×3.5 mm |
| površinski | |
| svjetlina | 700 cd/m² (Typ.) |
| omjer kontrasta | 800:1 (Typ.) |
| boje prikaza | 262K (6-bit) |
| vrijeme odziva | 15/35 (Typ.)(Tr/Td) |
| kut gledanja | 80/80/45/80 (Typ.)(CR≥10)(L/R/U/D) |
| frekvencija | 70Hz |
| tip svjetiljke | 5S2PWLEDWithout Driver |
| signalno sučelje | Digital RGB (8/24-bit) + SPI, CCIR601/656, 50 pins |
| ulazni napon | 3.3/3.3V (Typ.)(VCI/VDDIO) |
| primjena | IA |
