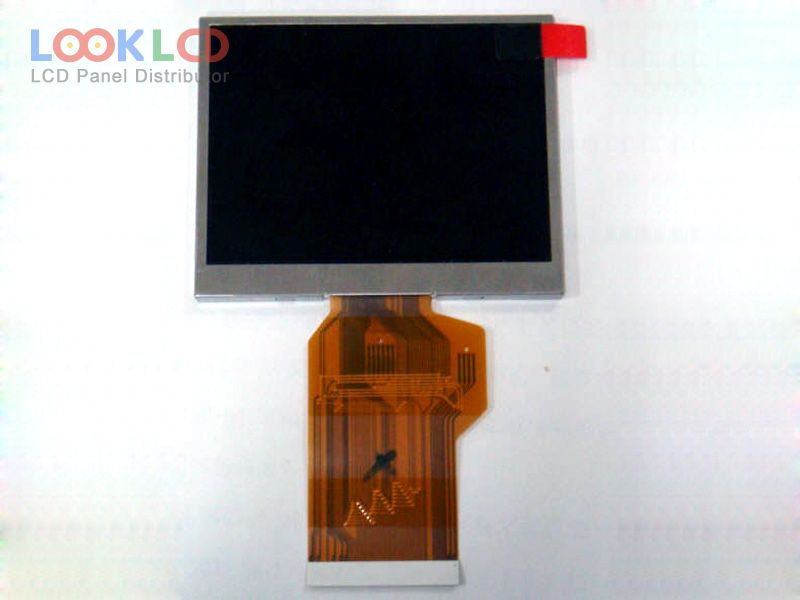

| Broj dijela | PT035TN01 V.3 |
| Marka | Innolux |
| Veličina | 3.5 |
| Primjena | PND |
| Rezolucija | 320×240 |
| Sastav | LCM |
| Svjetlina | 250 |
| CR | 300:1 |
| Boje | 16.7M |
| Pozadinsko osvjetljenje | WLED |
| Sučelje | Parallel/Serial |
| marka panela | INNOLUX |
| panelni model | PT035TN01 V.3 |
| vrsta panela | a-Si TFT-LCD , LCM |
| veličina ploče | 3.5 inch |
| rezolucija | 320(RGB)×240 , QVGA |
| način prikaza | TN, Normally White, TMR |
| aktivno područje | 70.08×52.56 mm |
| obris | 78.2×65×3.8 mm |
| površinski | Hard coating |
| svjetlina | 250 cd/m² (Typ.) |
| omjer kontrasta | 300 : 1 (Typ.) |
| boje prikaza | 16.7M (8-bit) |
| vrijeme odziva | 15/20 (Typ.)(Tr/Td) |
| kut gledanja | 65/65/45/65 (Typ.)(CR≥10)(L/R/U/D) |
| frekvencija | 60Hz |
| tip svjetiljke | 6S1PWLEDWithout Driver |
| signalno sučelje | Digital RGB (8/24-bit) + SPI, CCIR601/656, 60 pins |
| ulazni napon | 3.3/5.0/15.0/-10.0V (Typ.)(VCC/AVDD/VGH/VGL) |
| primjena | PND |
