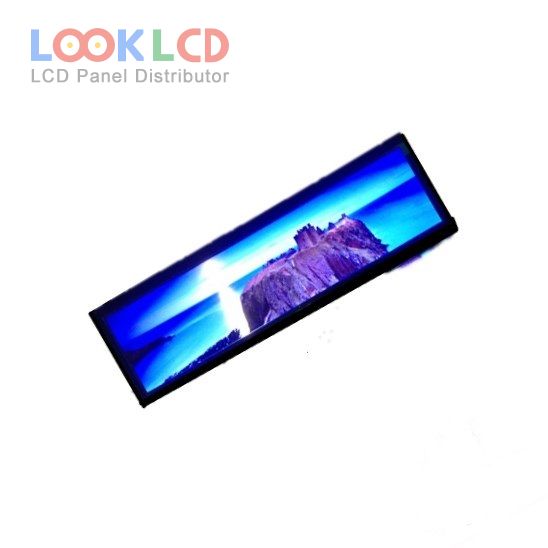

| Broj dijela | S088WX03 |
| Marka | CDTECH |
| Veličina | 8.8 |
| Primjena | IA |
| Rezolucija | 1280×320 |
| Sastav | LCM |
| Svjetlina | 600 |
| CR | 700:1 |
| Boje | 16.7M |
| Pozadinsko osvjetljenje | WLED |
| Sučelje | LVDS |
| marka panela | CDTECH |
| panelni model | S088WX03 |
| vrsta panela | a-Si TFT-LCD , LCM |
| veličina ploče | 8.8 inch(2/5 cut of 10.1") |
| rezolucija | 1280(RGB)×320 |
| način prikaza | TN, Normally White, Transmissive |
| aktivno područje | 216.96×54.24 mm |
| obris | 229.66×67.5×6.2 mm |
| površinski | |
| svjetlina | 600 cd/m² (Typ.) |
| omjer kontrasta | 700:1 (Typ.) |
| boje prikaza | 16.7M (8-bit), CIE193162% |
| vrijeme odziva | 10/15 (Typ.)(Tr/Td) |
| kut gledanja | 65/65/65/55 (Typ.)(CR≥10)(L/R/U/D) |
| frekvencija | 60Hz |
| tip svjetiljke | 4S9PWLEDWithout Driver |
| signalno sučelje | LVDS (1 ch, 8-bit), 40 pins |
| ulazni napon | 3.3/11/20/-6.8V (Typ.)(DVDD/AVDD/VGH/VGL) |
| primjena | IA |
