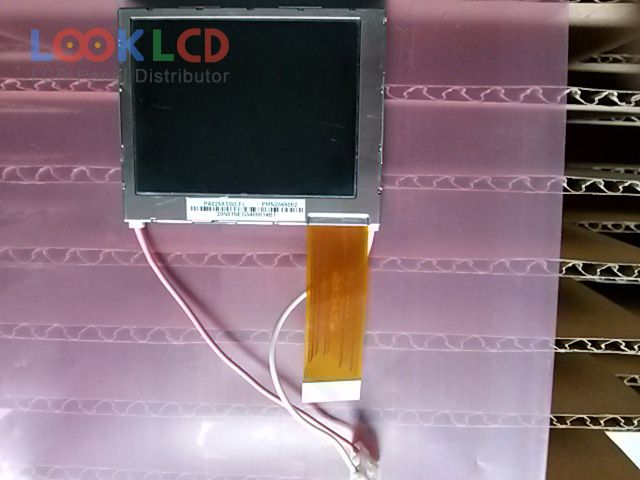

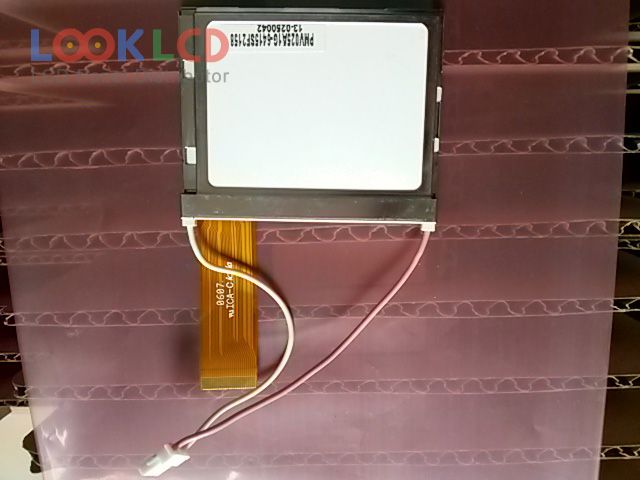

| Broj dijela | PA025XSB |
| Marka | E Ink |
| Veličina | 2.5 |
| Primjena | DSC |
| Rezolucija | 480×234 |
| Sastav | LCM |
| Svjetlina | 250 |
| CR | 350:1 |
| Boje | Full color |
| Pozadinsko osvjetljenje | CCFL |
| Sučelje | Analog |
| marka panela | PVI |
| panelni model | PA025XSB |
| vrsta panela | a-Si TFT-LCD , LCM |
| veličina ploče | 2.5 inch |
| rezolucija | 480×234 |
| način prikaza | TN, Normally White, Transmissive |
| aktivno područje | 49.68×37.44 mm |
| obris | 61.6×49.3×6.1 mm |
| površinski | Antiglare |
| svjetlina | 250 cd/m² (Typ.) |
| omjer kontrasta | 350:1 (Typ.) |
| boje prikaza | Full color |
| vrijeme odziva | 15/25 (Typ.)(Tr/Td) |
| kut gledanja | 50/50/15/35 (Typ.)(CR≥10)(L/R/U/D) |
| tip svjetiljke | 1 pcsCCFLWithout Driver |
| signalno sučelje | TFT Specific Analog RGB, 28 pins |
| ulazni napon | 5.0/5.0/5.0/15.0/-12.0V (Typ.)(VCC/VDD/AVDD/VGH/VGL) |
| primjena | DSC |
| 990000270 | TPO | 2.5 | 320×240 |
| A025DN01 V3 | AUO | 2.5 | 320×240 |
| LMS250GF01 | Samsung | 2.5 | |
| LS025Q1UC01 | SHARP | 2.5 | |
| LTV250QV-F0A | Samsung | 2.5 | 320×240 |
| PA025XSB | E Ink | 2.5 | 480×234 |
| PA025XSC | E Ink | 2.5 | 480×234 |
| PA025XSF | E Ink | 2.5 | 480×234 |
| TD025THED2 | TPO | 2.5 | 320×240 |
| TD025THEE6 | TPO | 2.5 | 640×240 |
| 990000270 | TPO | 2.5 | 320×240 |
| A025DN01 V3 | AUO | 2.5 | 320×240 |
| A027DN03 V8 | AUO | 2.7 | 320×240 |
| A030DN04 V0 | AUO | 3.0 | 320×240 |
| DLC0350CZG-T | Other | 3.5 | 320×240 |
| L3F04X-80300C | Epson | 0.48 | 1024×768 |
| LS025A8DZ01S | SHARP | 2.5 | 320×240 |
| LS027T3DG01 | SHARP | 2.7 | 320×240 |
| TD015THEB2 | TPO | 1.5 | 480×240 |
| TD024THEB2 | TPO | 2.4 | 480×240 |
