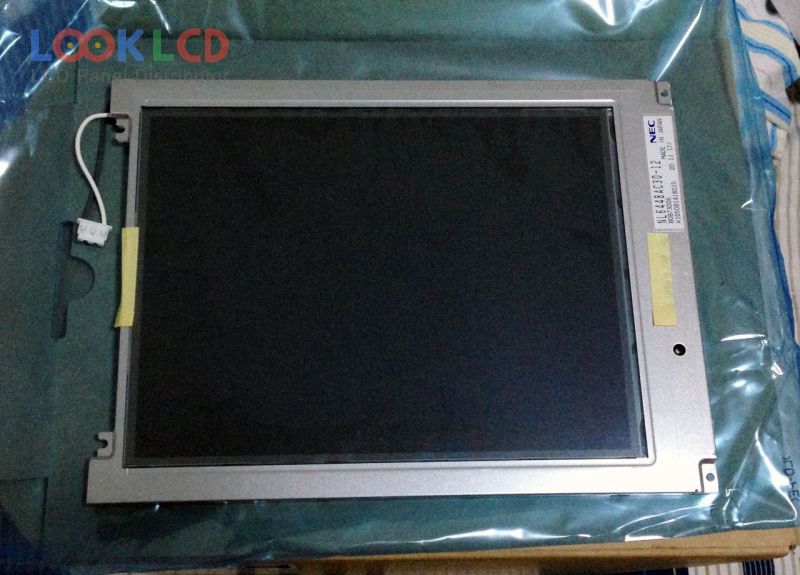

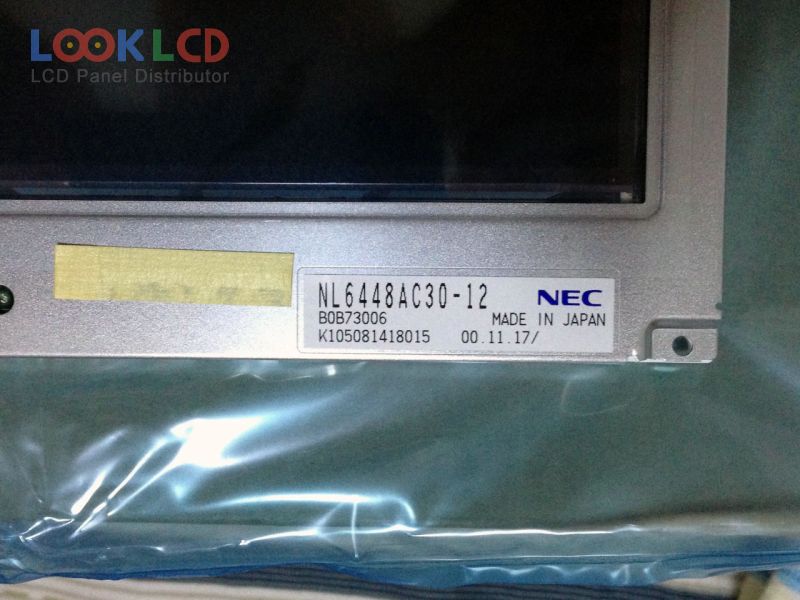

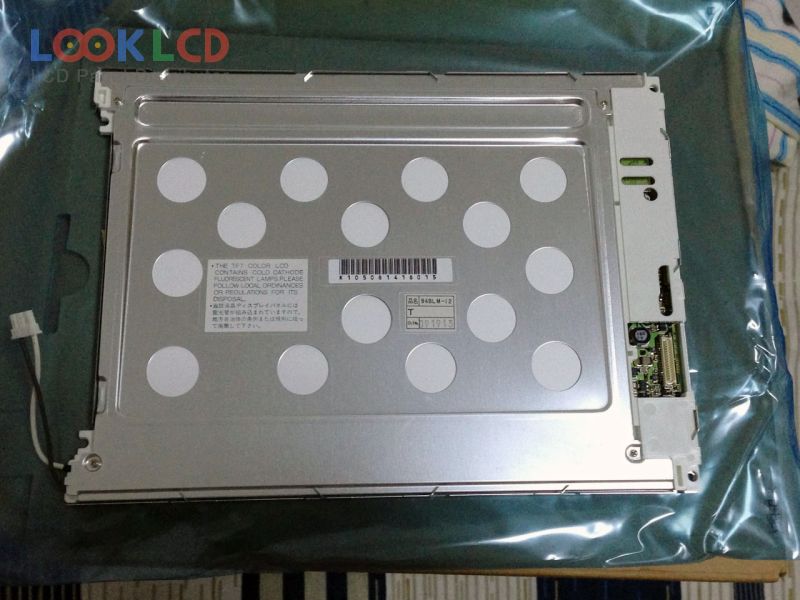

| Broj dijela | NL6448AC30-12 |
| Marka | NLT |
| Veličina | 9.4 |
| Primjena | IA |
| Rezolucija | 640×480 |
| Sastav | LCM |
| Svjetlina | 70 |
| CR | 150:1 |
| Boje | 4096 |
| Pozadinsko osvjetljenje | CCFL |
| Sučelje | TTL |
| marka panela | NEC |
| panelni model | NL6448AC30-12 |
| vrsta panela | a-Si TFT-LCD , LCM |
| veličina ploče | 9.4 inch |
| rezolucija | 640(RGB)×480 , VGA |
| način prikaza | TN, Normally White, Transmissive |
| aktivno područje | 192×144 mm |
| obris | 241.8×178.8 mm |
| površinski | |
| svjetlina | 70 cd/m² (Typ.) |
| omjer kontrasta | 150:1 (Typ.) |
| boje prikaza | 4096 (4-bit), CIE193145% |
| vrijeme odziva | 40 (Typ.)(Tr) |
| kut gledanja | 45/45/25/25 (Typ.)(CR≥10)(L/R/U/D) |
| frekvencija | 60Hz |
| tip svjetiljke | 1 pcsCCFLWithout Driver |
| signalno sučelje | CMOS (1 ch, 4-bit), 31 pins |
| ulazni napon | 5.0V (Typ.) |
| primjena | IA |
