| Broj dijela | N140BGE-L31 |
| Marka | Innolux |
| Veličina | 14.0 |
| Primjena | NBPC |
| Rezolucija | 1366×768 |
| Sastav | LCM |
| Svjetlina | 200 |
| CR | 500:1 |
| Boje | 262K |
| Pozadinsko osvjetljenje | WLED |
| Sučelje | LVDS |
| marka panela | CHIMEI INNOLUX |
| panelni model | N140BGE-L31 7 Compatible model |
| vrsta panela | a-Si TFT-LCD , LCM |
| veličina ploče | 14.0 inch |
| rezolucija | 1366(RGB)×768 , WXGA |
| način prikaza | TN, Normally White, Transmissive |
| aktivno područje | 309.399×173.952 mm |
| obris | 320.4×205.1×3.6 mm |
| stil oblika | Flat (PCBA Flat, Depth 3.4~4.0mm) |
| površinski | Antiglare, Hard coating (3H) |
| svjetlina | 200 cd/m² (Typ.) |
| omjer kontrasta | 500:1 (Typ.) |
| boje prikaza | 262K (6-bit), CIE193145% |
| vrijeme odziva | 3/8 (Typ.)(Tr/Td) |
| kut gledanja | 45/45/15/30 (Typ.)(CR≥10)(L/R/U/D) |
| frekvencija | 60Hz |
| tip svjetiljke | WLEDEmbedded (LED Driver) |

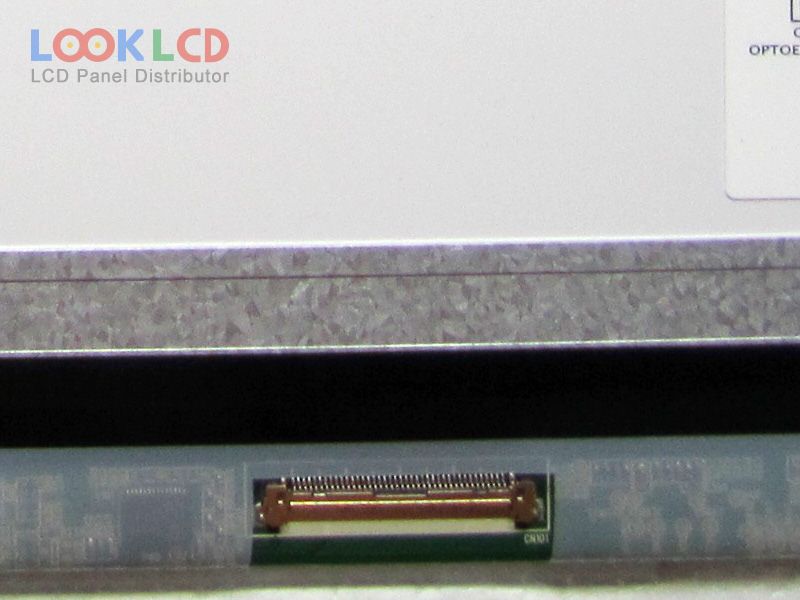

| signalno sučelje | LVDS (1 ch, 6-bit), 40 pins |
| ulazni napon | 3.3V (Typ.) |
| primjena | NBPC |
| N140B6-D11 | Innolux | 14.0 | 1366×768 |
| N140B6-L06 | Innolux | 14.0 | 1366×768 |
| N140BGE-L12 | Innolux | 14.0 | 1366×768 |
| N140BGE-L21 | Innolux | 14.0 | 1366×768 |
| N140BGE-L23 | Innolux | 14.0 | 1366×768 |
| N140BGE-L31 | Innolux | 14.0 | 1366×768 |
| N140BGE-L32 | Innolux | 14.0 | 1366×768 |
| N140BGE-L33 | Innolux | 14.0 | 1366×768 |
| N140BGE-L42 | Innolux | 14.0 | 1366×768 |
| N140BGK-L33 | Innolux | 14.0 | 1366×768 |
| B141EW04 V7 | AUO | 14.1 | 1280×800 |
| LP140WH2-TLL1 | LG Display | 14.0 | 1366×768 |
| LP154W02-B1K6 | LG Display | 15.4 | 1680×1050 |
| LP154WX7-TLB1 | LG Display | 15.4 | 1280×800 |
| LP156WH1-TLC2 | LG Display | 15.6 | 1366×768 |
| LTD121EWRF | TOSHIBA | 12.1 | 1280×800 |
| LTN141AT09-101 | Samsung | 14.1 | 1280×800 |
| LTN156AT01-D02 | Samsung | 15.6 | 1366×768 |
| LTN170WX-L06 | Samsung | 17.0 | 1440×900 |
| N156BGE-EA1 | Innolux | 15.6 | 1366×768 |
