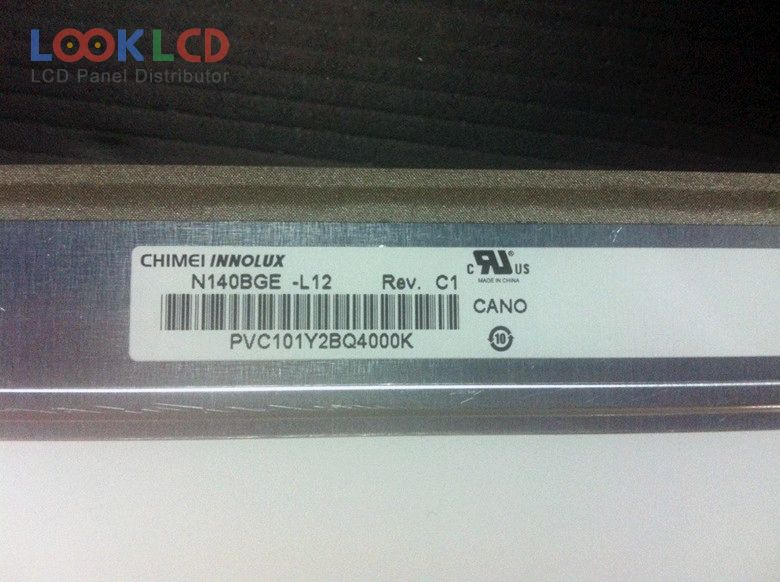

| Broj dijela | N140BGE-L12 |
| Marka | Innolux |
| Veličina | 14.0 |
| Primjena | NBPC |
| Rezolucija | 1366×768 |
| Sastav | LCM |
| Svjetlina | 200 |
| CR | 500:1 |
| Boje | 262K |
| Pozadinsko osvjetljenje | WLED |
| Sučelje | LVDS |
| marka panela | CHIMEI INNOLUX |
| panelni model | N140BGE-L12 11 Compatible model |
| vrsta panela | a-Si TFT-LCD , LCM |
| veličina ploče | 14.0 inch |
| rezolucija | 1366(RGB)×768 , WXGA |
| način prikaza | TN, Normally White, Transmissive |
| aktivno područje | 309.399×173.952 mm |
| obris | 323.5×192×5.2 mm |
| stil oblika | Wedge (PCBA Bent, Depth ≥5.2mm) |
| površinski | Antiglare, Hard coating (3H) |
| svjetlina | 200 cd/m² (Typ.) |
| omjer kontrasta | 500:1 (Typ.) |
| boje prikaza | 262K (6-bit), CIE193145% |
| vrijeme odziva | 4/6 (Typ.)(Tr/Td) |
| kut gledanja | 45/45/20/45 (Typ.)(CR≥10)(L/R/U/D) |
| frekvencija | 60Hz |
| tip svjetiljke | WLEDEmbedded (LED Driver) |

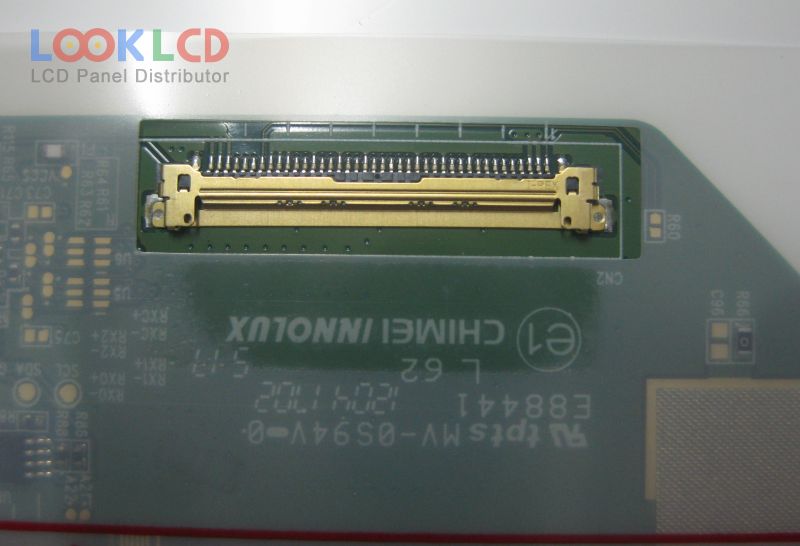

| signalno sučelje | LVDS (1 ch, 6-bit), 40 pins |
| ulazni napon | 3.3V (Typ.) |
| primjena | NBPC |
| N140B6-D11 | Innolux | 14.0 | 1366×768 |
| N140B6-L01 | Innolux | 14.0 | 1366×768 |
| N140B6-L02 | Innolux | 14.0 | 1366×768 |
| N140BGE-E43 | Innolux | 14.0 | 1366×768 |
| N140BGE-L11 | Innolux | 14.0 | 1366×768 |
| N140BGE-L21 | Innolux | 14.0 | 1366×768 |
| N140BGE-L23 | Innolux | 14.0 | 1366×768 |
| N140BGE-L31 | Innolux | 14.0 | 1366×768 |
| N140BGE-L42 | Innolux | 14.0 | 1366×768 |
| N140BGE-LB2 | Innolux | 14.0 | 1366×768 |
| B154PW02 V3 | AUO | 15.4 | 1440×900 |
| B170PW03 V0 | AUO | 17.0 | 1440×900 |
| LP140WH1-TLA1 | LG Display | 14.0 | 1366×768 |
| LP154WE3-TLB1 | LG Display | 15.4 | 1680×1050 |
| LQ133M1JW03 | SHARP | 13.3 | 1920×1080 |
| LTN125AT03-803 | Samsung | 12.5 | 1366×768 |
| LTN133AT23-803 | Samsung | 13.3 | 1366×768 |
| M116NWR6 R0 | IVO | 11.6 | 1366×768 |
| N133I5-L01 | Innolux | 13.3 | 1280×800 |
| N156B3-L01 | Innolux | 15.6 | 1366×768 |
