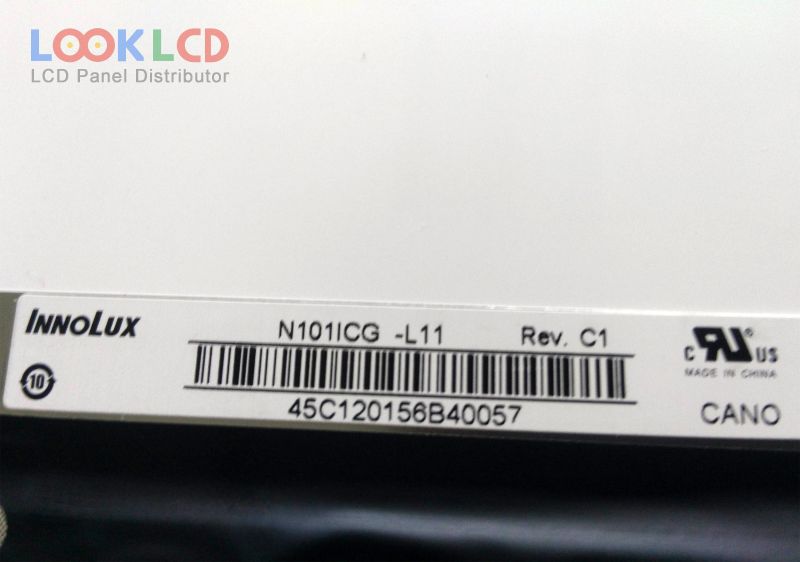

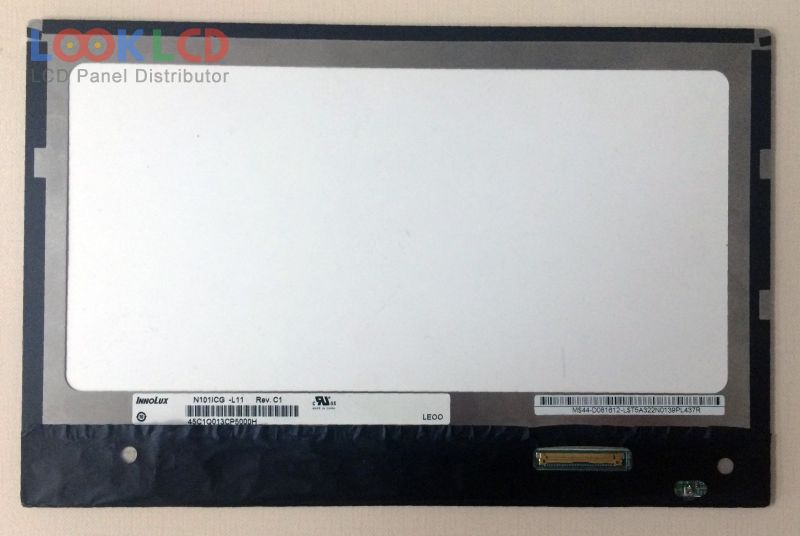

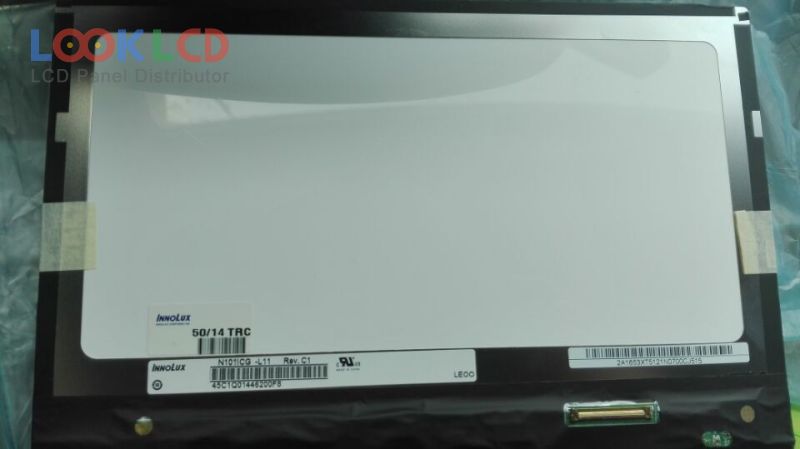

| Broj dijela | N101ICG-L11 |
| Marka | Innolux |
| Veličina | 10.1 |
| Primjena | PAD |
| Rezolucija | 1280×800 |
| Sastav | LCM |
| Svjetlina | 350 |
| CR | 800:1 |
| Boje | 262K |
| Pozadinsko osvjetljenje | WLED |
| Sučelje | LVDS |
| marka panela | INNOLUX |
| panelni model | N101ICG-L11 |
| vrsta panela | a-Si TFT-LCD , LCM |
| veličina ploče | 10.1 inch |
| rezolucija | 1280(RGB)×800 , WXGA |
| način prikaza | AAS, Normally Black, Transmissive |
| aktivno područje | 216.96×135.6 mm |
| obris | 227.42×147.69×4.85 mm |
| površinski | Antiglare, Hard coating (3H) |
| svjetlina | 350 cd/m² (Typ.) |
| omjer kontrasta | 800:1 (Typ.) |
| boje prikaza | 262K (6-bit), CIE193150% |
| vrijeme odziva | 14/11 (Typ.)(Tr/Td) |
| kut gledanja | 85/85/85/85 (Typ.)(CR≥10)(L/R/U/D) |
| frekvencija | 60Hz |
| tip svjetiljke | 3 stringsWLEDEmbedded (LED Driver) |
| signalno sučelje | LVDS (1 ch, 6-bit), 40 pins |
| ulazni napon | 3.3V (Typ.) |
| primjena | PAD |
| F101NWN7-0 | IVO | 10.1 | 1920×1200 |
| LP101WH4-SLP2 | LG Display | 10.1 | 1366×768 |
| LP101WX1-SLP2 | LG Display | 10.1 | 1280×800 |
| N101ICE-G62 | Innolux | 10.1 | 1280×800 |
| N101ICE-G63 | Innolux | 10.1 | 1280×800 |
| N101ICG-L11 | Innolux | 10.1 | 1280×800 |
| N101ICG-L21 Rev.A1 | Innolux | 10.1 | 1280×800 |
| N101ICG-L21 Rev.B1 | Innolux | 10.1 | 1280×800 |
| N101ICG-L21 Rev.C1 | Innolux | 10.1 | 1280×800 |
| N101ICG-L21 Rev.C2 | Innolux | 10.1 | 1280×800 |
| B101UAN07.2 | AUO | 10.1 | 1200×1920 |
| BP080WX1-100 | BOE | 8.0 | 1280×800 |
| HE070IA-04M | Innolux | 7.0 | 800×1280 |
| HJ101NA-02C | Innolux | 10.1 | 1280×800 |
| LQ070M1SX01 | SHARP | 7.0 | 1200×1920 |
| N101ICG-L21 Rev.B1 | Innolux | 10.1 | 1280×800 |
| Q101IRE-LA1 | Innolux | 10.1 | 1280×800 |
| VVF07H119A90 | Panasonic | 7.0 | 800×1280 |
| VVX09F035M20 | Panasonic | 8.9 | 1920×1200 |
| VVX10F008B00 | Panasonic | 10.1 | 1920×1200 |
