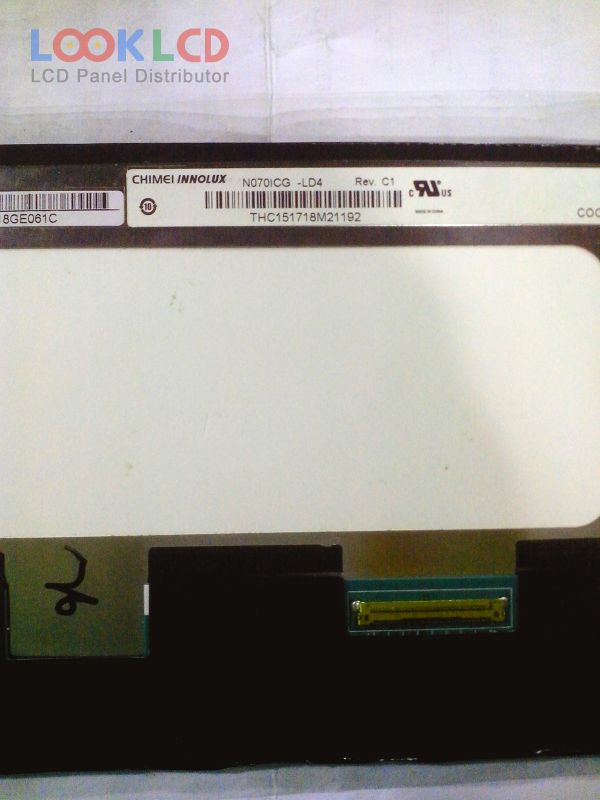

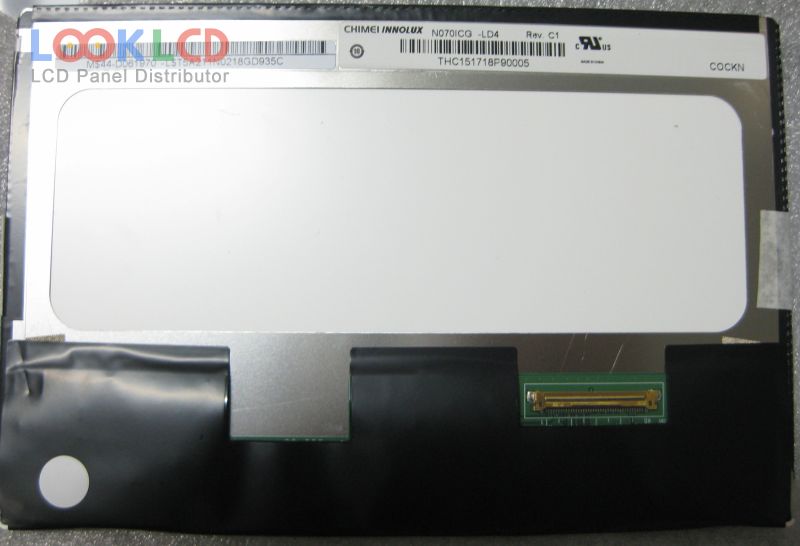

| Broj dijela | N070ICG-LD4 |
| Marka | Innolux |
| Veličina | 7.0 |
| Primjena | UMPC |
| Rezolucija | 1280×800 |
| Sastav | LCM |
| Svjetlina | |
| CR | 800:1 |
| Boje | 262K |
| Pozadinsko osvjetljenje | WLED |
| Sučelje | LVDS |
| marka panela | CHIMEI INNOLUX |
| panelni model | N070ICG-LD4 |
| vrsta panela | a-Si TFT-LCD , LCM |
| veličina ploče | 7.0 inch |
| rezolucija | 1280(RGB)×800 , WXGA |
| način prikaza | IPS, Normally Black, Transmissive |
| aktivno područje | 149.76×93.6 mm |
| površinski | |
| svjetlina | |
| omjer kontrasta | 800:1 (Typ.) |
| boje prikaza | 262K (6-bit) |
| vrijeme odziva | 13/12 (Typ.)(Tr/Td) |
| kut gledanja | 89/89/89/89 (Typ.)(CR≥10)(L/R/U/D) |
| frekvencija | 60Hz |
| tip svjetiljke | WLED |
| signalno sučelje | LVDS (1 ch, 6-bit) |
| ulazni napon | 3.3V (Typ.) |
| primjena | UMPC |
