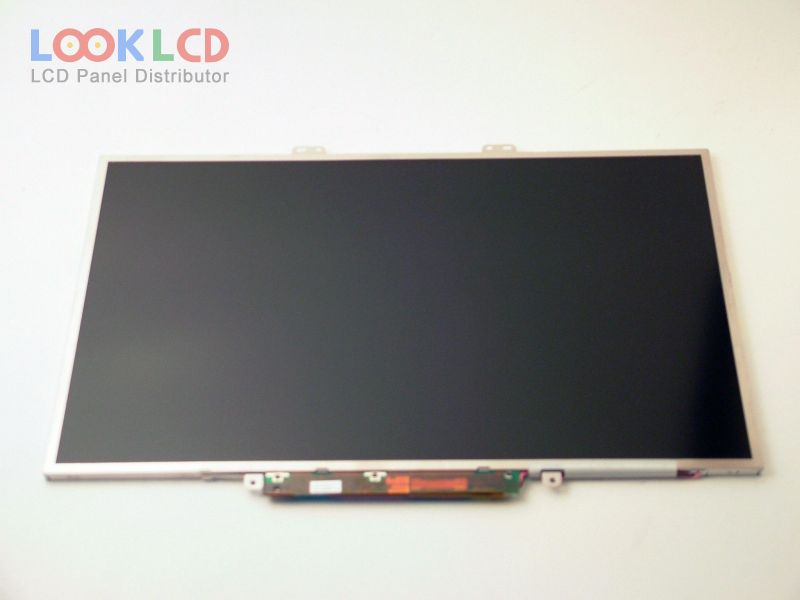

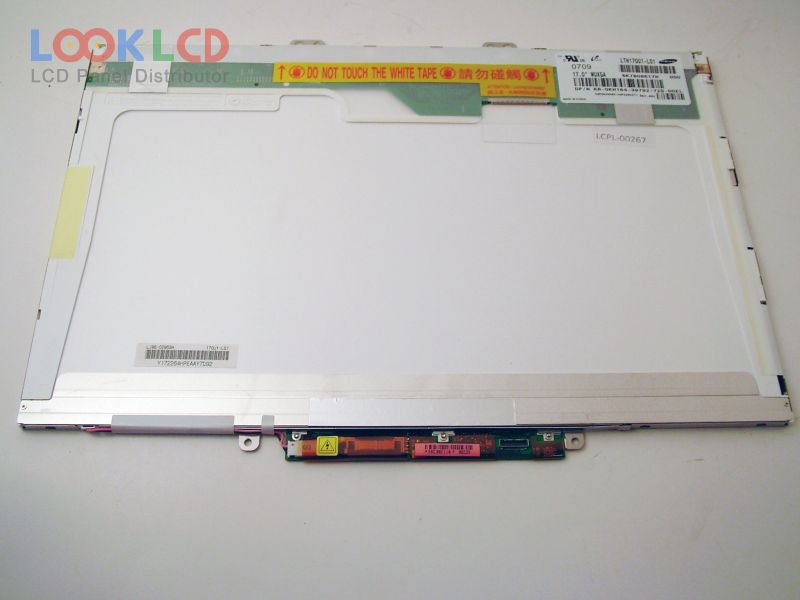

| Broj dijela | LTN170U1-L02 |
| Marka | Samsung |
| Veličina | 17.0 |
| Primjena | NBPC |
| Rezolucija | 1920×1200 |
| Sastav | LCM |
| Svjetlina | |
| CR | |
| Boje | 262K |
| Pozadinsko osvjetljenje | CCFL |
| Sučelje | LVDS |
| marka panela | SAMSUNG |
| panelni model | LTN170U1-L02 |
| vrsta panela | a-Si TFT-LCD , LCM |
| veličina ploče | 17.0 inch |
| rezolucija | 1920(RGB)×1200 , WUXGA |
| način prikaza | TN, Normally White, Transmissive |
| stil oblika | Wedge (PCBA Bent, Depth ≥5.2mm) |
| površinski | |
| svjetlina | |
| omjer kontrasta | |
| boje prikaza | 262K (6-bit) |
| vrijeme odziva | |
| kut gledanja | |
| frekvencija | 60Hz |
| tip svjetiljke | CCFL |
| signalno sučelje | LVDS (2 ch, 6-bit) |
| primjena | NBPC |
