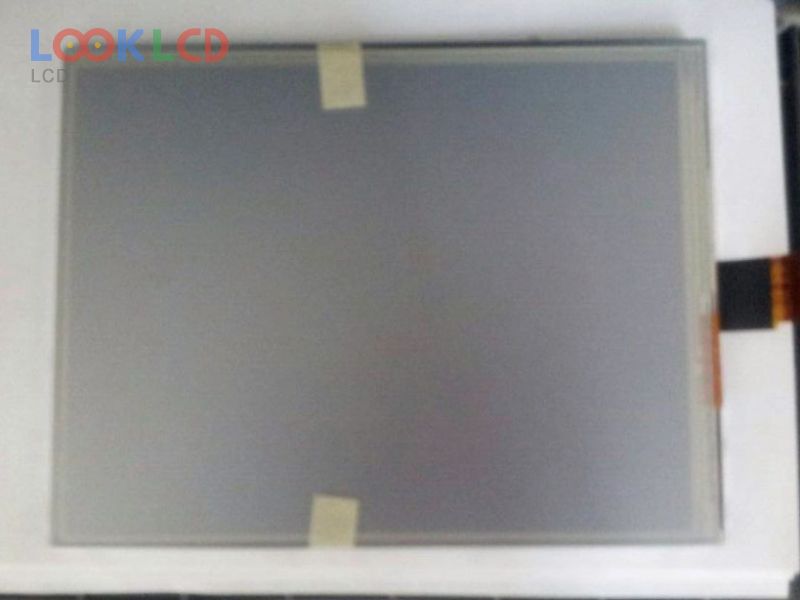

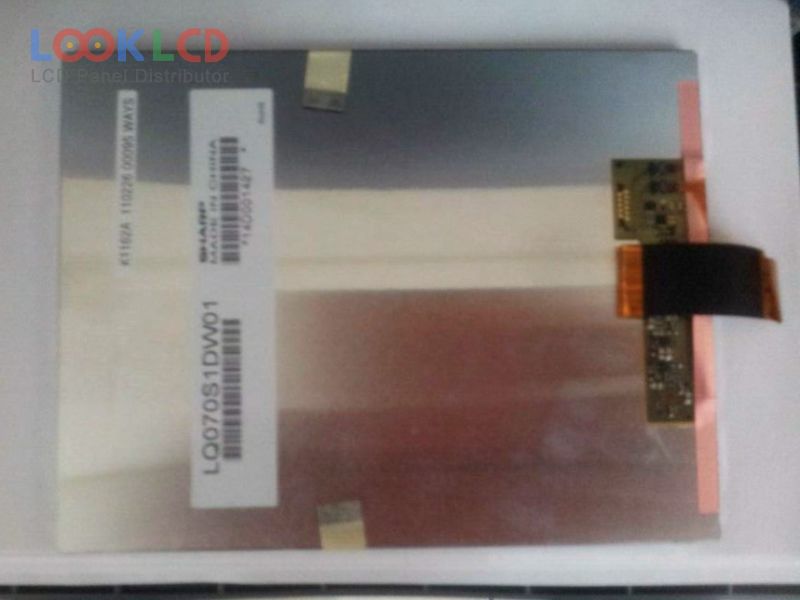

| Broj dijela | LQ070S1DW01 |
| Marka | SHARP |
| Veličina | 7.0 |
| Primjena | PAD |
| Rezolucija | 600×800 |
| Sastav | LCM |
| Svjetlina | 300 |
| CR | 800:1 |
| Boje | |
| Pozadinsko osvjetljenje | WLED |
| Sučelje | |
| marka panela | SHARP |
| panelni model | LQ070S1DW01 |
| vrsta panela | a-Si TFT-LCD , LCM |
| veličina ploče | 7.0 inch |
| rezolucija | 600(RGB)×800 , SVGA |
| način prikaza | Transmissive |
| obris | 119.9×156.7 mm |
| površinski | |
| svjetlina | 300 cd/m² (Typ.) |
| omjer kontrasta | 800:1 (Typ.) |
| boje prikaza | |
| vrijeme odziva | 25 (Typ.)(Tr+Td) |
| kut gledanja | |
| tip svjetiljke | WLED |
| primjena | PAD |
| LQ070T3AG02 | SHARP | 7.0 | 480×234 |
| LQ070T5BG01 | SHARP | 7.0 | 480×234 |
| LQ070T5DR01 | SHARP | 7.0 | 480×240 |
| LQ070T5DR06 | SHARP | 7.0 | 480×240 |
| LQ070Y3DG04 | SHARP | 7.0 | 800×480 |
| LQ070Y3DG3A | SHARP | 7.0 | 800×480 |
| LQ070Y3LG4A | SHARP | 7.0 | 800×480 |
| LQ070Y5DG01 | SHARP | 7.0 | 800×480 |
| LQ070Y5DG30 | SHARP | 7.0 | 800×480 |
| LQ070Y5DG36 | SHARP | 7.0 | 800×480 |
| B116XAN01.0 | AUO | 11.6 | 1366×768 |
| BF097XN | Innolux | 9.7 | 1024×768 |
| BP070WX1-300 | BOE | 7.0 | 800×1280 |
| CLAA101WH12 LE | CPT | 10.1 | 1280×800 |
| HSD101PWW1-B00 | HannStar | 10.1 | 1280×800 |
| HV121WX5-113 | HYDIS | 12.1 | 1280×800 |
| LPM070W425D | JDI | 7.0 | 1200×1920 |
| LTL101AL06-W02 | Samsung | 10.1 | 1280×800 |
| LTN097XL02-A01 | Samsung | 9.7 | 1024×768 |
| N080ICE-GB1 | Innolux | 8.0 | 800×1280 |
