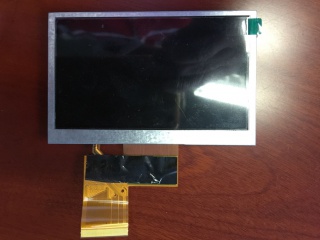

| Broj dijela | LQ043T1DG59 |
| Marka | Sharp |
| Veličina | 4.3 |
| Primjena | Industrial Handheld |
| Rezolucija | 480×272 |
| Sastav | a-Si TFT-LCD , LCM |
| Svjetlina | |
| CR | 500:1 |
| Boje | 16.7M |
| Pozadinsko osvjetljenje | 9S1P |
| Sučelje | |
| marka panela | Sharp |
| veličina ploče | 4.3" |
| rezolucija | 480(RGB)×272, WQVGA, 128PPI |
| područje prikaza | 95.04(W)×53.856(H) mm |
| veličina obrisa | 105.5(W)×67.2(H) ×3.1(D) mm |
| svjetlina | 500 cd/m² (Typ.) |
| kut gledanja | 65/65/50/55 (Typ.)(CR≥10) |
| najbolji pogled na | 6 o'clock |
| boje prikaza | 16.7M 42% NTSC |
| frekvencija | 60Hz |
| težina | TBD |
| panelni model | LQ043T1DG59 1 Compatible |
| vrsta panela | a-Si TFT-LCD , LCM |
| format piksela | RGB Vertical Stripe |
| otvor za okvir | 100.8(W)×57.5(H) mm |
| površinski | Antiglare, Hard coating (2H) |
| omjer kontrasta | 500:1 (Typ.) (TM) |
| način prikaza | TN, Normally White, Transmissive |
| vrijeme odziva | 16 (Typ.)(Tr+Td) |
| tip svjetiljke | 9S1P WLED , 15K hours , Without Driver |
| ekran na dodir | Without |
| primjena | Industrial Handheld & PDA |
