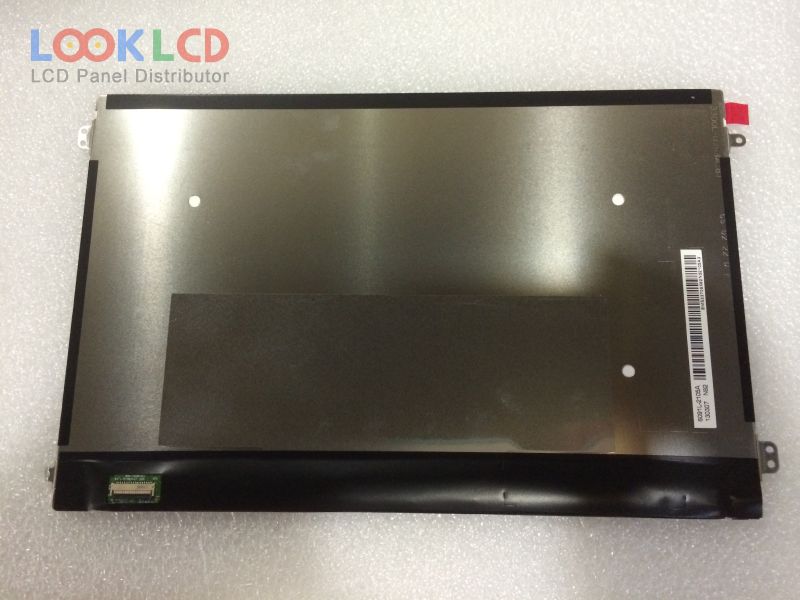

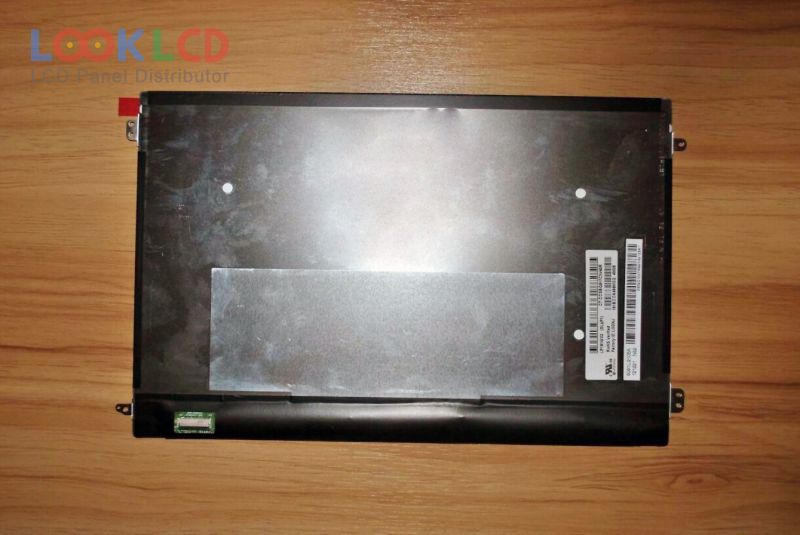

| Broj dijela | LP101WX2-SLP1 |
| Marka | LG Display |
| Veličina | 10.1 |
| Primjena | PAD |
| Rezolucija | 1280×800 |
| Sastav | LCM |
| Svjetlina | 400 |
| CR | 500:1 |
| Boje | 16.7M |
| Pozadinsko osvjetljenje | WLED |
| Sučelje | LVDS |
| marka panela | LG Display |
| panelni model | LP101WX2-SLP1 |
| vrsta panela | a-Si TFT-LCD , LCM |
| veličina ploče | 10.1 inch |
| rezolucija | 1280(RGB)×800 , WXGA |
| način prikaza | IPS, Normally Black, Transmissive |
| aktivno područje | 216.96×135.6 mm |
| obris | 228.6×148.15×4.45 mm |
| površinski | Glare (Haze 0%) |
| svjetlina | 400 cd/m² (Typ.) |
| omjer kontrasta | 500:1 (Min.) |
| boje prikaza | 16.7M (6-bit + Hi-FRC) |
| vrijeme odziva | 35 (Typ.)(Tr/Td) |
| kut gledanja | 80/80/80/80 (Min.)(CR≥10)(L/R/U/D) |
| frekvencija | 60Hz |
| tip svjetiljke | WLEDEmbedded (LED Driver) |
| signalno sučelje | LVDS (1 ch, 8-bit), 40 pins |
| ulazni napon | 3.3V (Typ.) |
| primjena | PAD |
