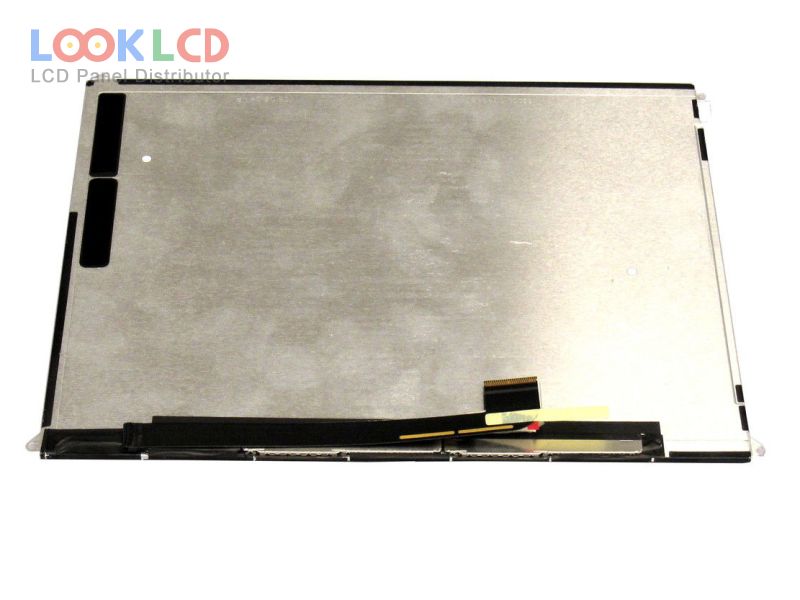

| Broj dijela | LP097QX1-SPA1 |
| Marka | LG Display |
| Veličina | 9.7 |
| Primjena | PAD |
| Rezolucija | 2048×1536 |
| Sastav | LCM |
| Svjetlina | 440 |
| CR | 800:1 |
| Boje | 16.7M |
| Pozadinsko osvjetljenje | WLED |
| Sučelje | eDP |
| marka panela | LG Display |
| panelni model | LP097QX1-SPA1 |
| vrsta panela | a-Si TFT-LCD , LCM |
| veličina ploče | 9.7 inch |
| rezolucija | 2048(RGB)×1536 , QXGA |
| način prikaza | IPS, Normally Black, Transmissive |
| aktivno područje | 196.608×147.456 mm |
| obris | 208.88×167.12×5.17 mm |
| površinski | Glare (Haze 0%), Hard coating (3H), Antireflection |
| svjetlina | 440 cd/m² (Typ.) |
| omjer kontrasta | 800:1 (Typ.) |
| boje prikaza | 16.7M (8-bit) |
| vrijeme odziva | 16 (Typ.)(G to G) |
| kut gledanja | 80/80/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| frekvencija | 60Hz |
| tip svjetiljke | 7S6P×2CNWLEDWithout Driver |
| signalno sučelje | eDP (4 Lanes), 51 pins |
| ulazni napon | 3.3V (Typ.) |
| primjena | PAD |
