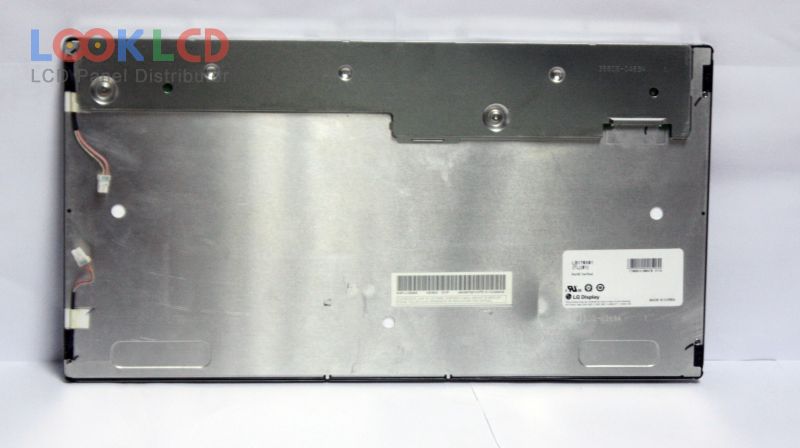

| Broj dijela | LB170X01-TL01 |
| Marka | LG Display |
| Veličina | 17.0 |
| Primjena | GM |
| Rezolucija | 1024×502 |
| Sastav | LCM |
| Svjetlina | 400 |
| CR | |
| Boje | |
| Pozadinsko osvjetljenje | CCFL |
| Sučelje | LVDS |
| marka panela | LG.Philips LCD |
| panelni model | LB170X01-TL01 |
| vrsta panela | a-Si TFT-LCD , LCM |
| veličina ploče | 17.0 inch |
| rezolucija | 1024(RGB)×502 |
| način prikaza | TN, Normally White, Transmissive |
| površinski | |
| svjetlina | 400 cd/m² (Typ.) |
| omjer kontrasta | |
| boje prikaza | , CIE193172% |
| vrijeme odziva | |
| kut gledanja | 70/70/40/70 (Typ.)(CR≥10)(L/R/U/D) |
| frekvencija | 60Hz |
| tip svjetiljke | CCFL |
| primjena | GM |
