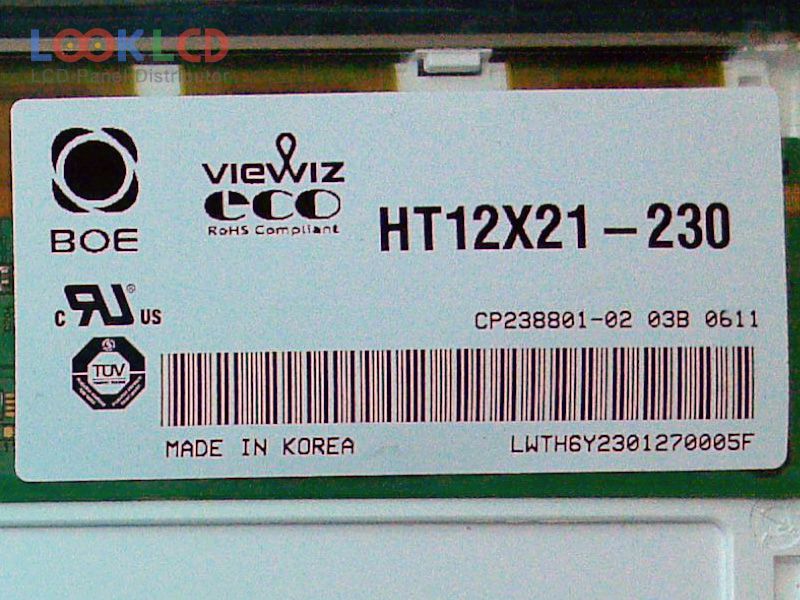

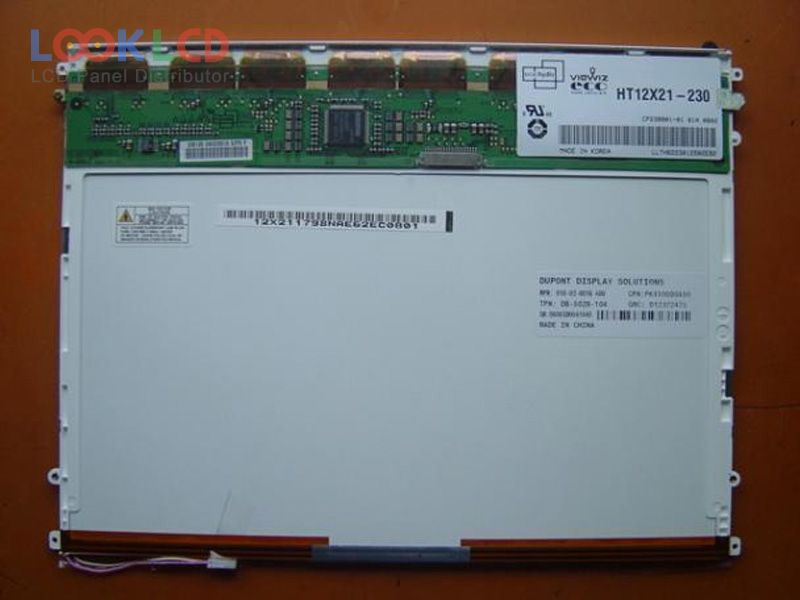

| Broj dijela | HT12X21-230 |
| Marka | HYDIS |
| Veličina | 12.1 |
| Primjena | PAD |
| Rezolucija | 1024×768 |
| Sastav | LCM |
| Svjetlina | 180 |
| CR | 450:1 |
| Boje | 262K |
| Pozadinsko osvjetljenje | CCFL |
| Sučelje | LVDS |
| marka panela | BOE HYDIS |
| panelni model | HT12X21-230 2 Compatible model |
| vrsta panela | a-Si TFT-LCD , LCM |
| veličina ploče | 12.1 inch |
| rezolucija | 1024(RGB)×768 , XGA |
| način prikaza | AFFS, Normally Black, Transmissive |
| aktivno područje | 245.76×184.32 mm |
| obris | 270×199×7 mm |
| površinski | Antiglare (Haze 25%), Hard coating (3H) |
| svjetlina | 180 cd/m² (Typ.) |
| omjer kontrasta | 450:1 (Typ.) |
| boje prikaza | 262K (6-bit), CIE193140% |
| vrijeme odziva | 40 (Typ.)(Tr+Td) |
| kut gledanja | 89/89/89/89 (Typ.)(CR≥10)(L/R/U/D) |
| frekvencija | 60Hz |
| tip svjetiljke | 1 pcsCCFLWithout Driver |
| signalno sučelje | LVDS (1 ch, 6-bit), 20 pins |
| ulazni napon | 3.3V (Typ.) |
| primjena | PAD |
