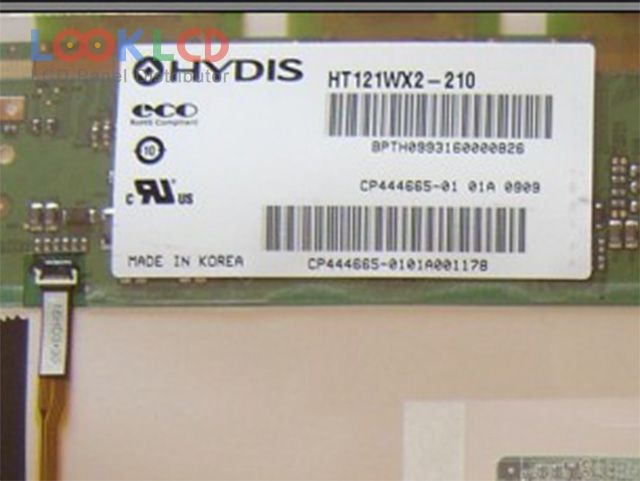

| Broj dijela | HT121WX2-210 |
| Marka | HYDIS |
| Veličina | 12.1 |
| Primjena | PAD |
| Rezolucija | 1280×800 |
| Sastav | LCM |
| Svjetlina | 200 |
| CR | 600:1 |
| Boje | 262K |
| Pozadinsko osvjetljenje | WLED |
| Sučelje | LVDS |
| marka panela | HYDIS |
| panelni model | HT121WX2-210 |
| vrsta panela | a-Si TFT-LCD , LCM |
| veličina ploče | 12.1 inch |
| rezolucija | 1280(RGB)×800 , WXGA |
| način prikaza | TN, Normally White, Transmissive |
| aktivno područje | 261.12×163.2 mm |
| obris | 276.8×180×6.8 mm |
| površinski | Glare (Haze 0%) |
| svjetlina | 200 cd/m² (Typ.) |
| omjer kontrasta | 600:1 (Typ.) |
| boje prikaza | 262K (6-bit) |
| vrijeme odziva | 10/15 (Typ.)(Tr/Td) |
| kut gledanja | 45/45/20/40 (Typ.)(CR≥10)(L/R/U/D) |
| frekvencija | 60Hz |
| tip svjetiljke | 12S4PWLEDEmbedded (LED Driver) |
| signalno sučelje | LVDS (1 ch, 6-bit), 40 pins |
| ulazni napon | 3.3V (Typ.) |
| primjena | PAD |
| AA121SL01 | Mitsubishi | 12.1 | 800×600 |
| HT121WX2-210 | HYDIS | 12.1 | 1280×800 |
| HT121WX2-211 | HYDIS | 12.1 | 1280×800 |
| HV121WX4-110 | HYDIS | 12.1 | 1280×800 |
| LM12S389 | SHARP | 12.1 | 800×600 |
| LQ12X12 | SHARP | 12.1 | 1024×768 |
| LT121DKXBF00 | TOSHIBA | 12.1 | 1280×800 |
| LTD121EWRF | TOSHIBA | 12.1 | 1280×800 |
| LTM12C285 | TOSHIBA | 12.1 | 800×600 |
| NL8060BC31-13A | NLT | 12.1 | 800×600 |
| B101EAN01.1 | AUO | 10.1 | 1280×800 |
| B101UAN01.E | AUO | 10.1 | 1920×1200 |
| CLAA080WQ02 XN | CPT | 8.0 | 800×1280 |
| HV121P01-101 | HYDIS | 12.1 | 1400×1050 |
| HV121WX6-111 | HYDIS | 12.1 | 1280×800 |
| LC104S1-A1 | LG Display | 10.4 | 800×600 |
| LQ101R1SX03 | SHARP | 10.1 | 2560×1600 |
| LQ104X2LX05B | SHARP | 10.4 | 1024×768 |
| LTL090CL01-W02 | Samsung | 9.0 | 1920×1280 |
| N070ICN-GB1 | Innolux | 7.0 | 800×1280 |
