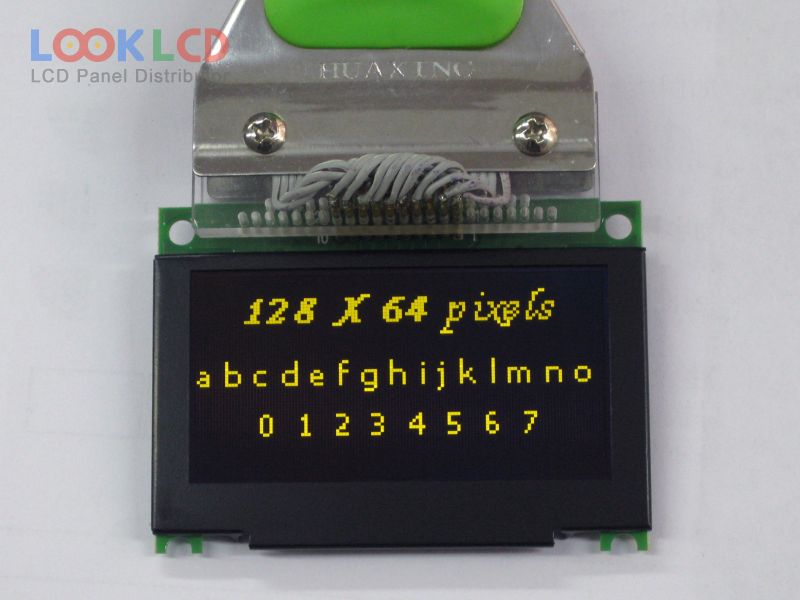

| Broj dijela | HGS128645-Y-EH-LV |
| Marka | Other |
| Veličina | 2.7 |
| Primjena | IA |
| Rezolucija | 128×64 |
| Sastav | OLED |
| Svjetlina | 100 |
| CR | 2000:1 |
| Boje | Mono(Yellow) |
| Pozadinsko osvjetljenje | self |
| Sučelje | CPU/SPI |
| marka panela | TSINGTEK |
| panelni model | HGS128645-Y-EH-LV |
| vrsta panela | PM-OLED , OLED |
| veličina ploče | 2.7 inch |
| rezolucija | 128×64 |
| aktivno područje | 61.41×30.69 mm |
| obris | 75×53.5×7 mm |
| površinski | |
| svjetlina | 100 cd/m² (Typ.) |
| omjer kontrasta | 2000 : 1 (Min.) |
| boje prikaza | Mono(Yellow) |
| kut gledanja | 80/80/80/80 (Min.)(L/R/U/D) |
| vozač ic | Built-in SSD1325 |
| signalno sučelje | 8-bit 6800/8080 parallel, SPI, 20 pins |
| ulazni napon | 3.3V (Typ.) |
| rohs: | |
| primjena | IA |
