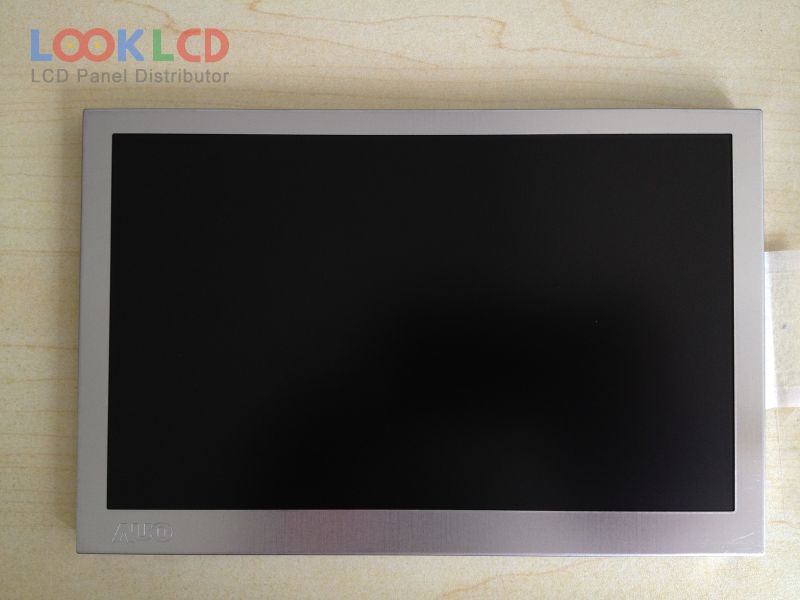

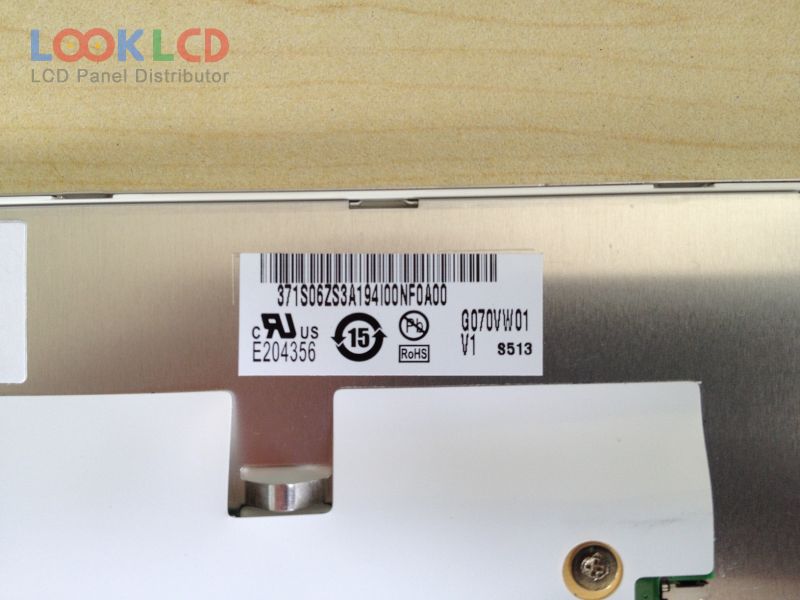

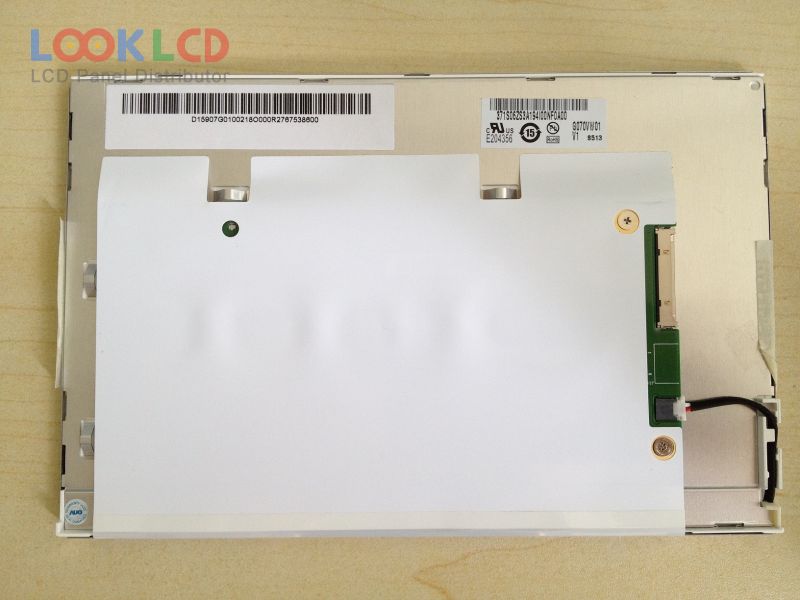

| Broj dijela | G070VW01 V1 |
| Marka | AUO |
| Veličina | 7.0 |
| Primjena | IA |
| Rezolucija | 800×480 |
| Sastav | LCM |
| Svjetlina | 350 |
| CR | 500:1 |
| Boje | 262K/16.2M |
| Pozadinsko osvjetljenje | WLED |
| Sučelje | LVDS |
| marka panela | AUO |
| panelni model | G070VW01 V1 |
| vrsta panela | a-Si TFT-LCD , LCM |
| veličina ploče | 7.0 inch |
| rezolucija | 800(RGB)×480 , WVGA |
| način prikaza | TN, Normally White, Transmissive |
| aktivno područje | 152.4×91.44 mm |
| obris | 170×111×8.5 mm |
| površinski | Antiglare, Hard coating (3H) |
| svjetlina | 350 cd/m² (Typ.) |
| omjer kontrasta | 500:1 (Typ.) |
| boje prikaza | 262K/16.2M (6-bit / 6-bit + FRC), CIE193150% |
| vrijeme odziva | 12/18 (Typ.)(Tr/Td) |
| kut gledanja | 65/65/50/60 (Typ.)(CR≥10)(L/R/U/D) |
| frekvencija | 60Hz |
| tip svjetiljke | WLEDEmbedded (LED Driver) |
| signalno sučelje | LVDS (1 ch, 6/8-bit), 20 pins |
| ulazni napon | 3.3V (Typ.) |
| primjena | IA |
| CLAP070WP03XG | CPT | 7.0 | 800×1280 |
| G070VTN01.0 | AUO | 7.0 | 800×480 |
| G070VTT01.0 | AUO | 7.0 | 800×480 |
| G070VVN01.0 | AUO | 7.0 | 800×480 |
| G070VVN01.1 | AUO | 7.0 | 800×480 |
| G070VW01 V0 | AUO | 7.0 | 800×480 |
| G070VW01 V1 | AUO | 7.0 | 800×480 |
| LB070WV3-SD02 | LG Display | 7.0 | 800×480 |
| TM070WA-22L06 | SANYO | 7.0 | 480×234 |
| TX18D37VM0AQA | KOE | 7.0 | 800×480 |
| B084SN02 V0 | AUO | 8.4 | 800×600 |
| EL320.256-FD8 V2 | PLANAR | 4.8 | 320×256 |
| KCG075VG2BB-G00 | Kyocera | 7.5 | 640×480 |
| LB121S03-TL02 | LG Display | 12.1 | 800×600 |
| LM050QC1T01 | SHARP | 5.0 | 320×240 |
| NL10276BC30-18 | NLT | 15.0 | 1024×768 |
| NL6448BC26-17 | NLT | 8.4 | 640×480 |
| NL6448BC33-59D | NLT | 10.4 | 640×480 |
| SP10Q010 | KOE | 3.8 | 320×240 |
| V26L8060BA | E Ink | 10.4 | 800×600 |
