Lumineq EL320.240.36 AGL podatkovna tablica, specifikacija, dionice, primjena www.looklcd-hr.com
LookLCD LookLCD

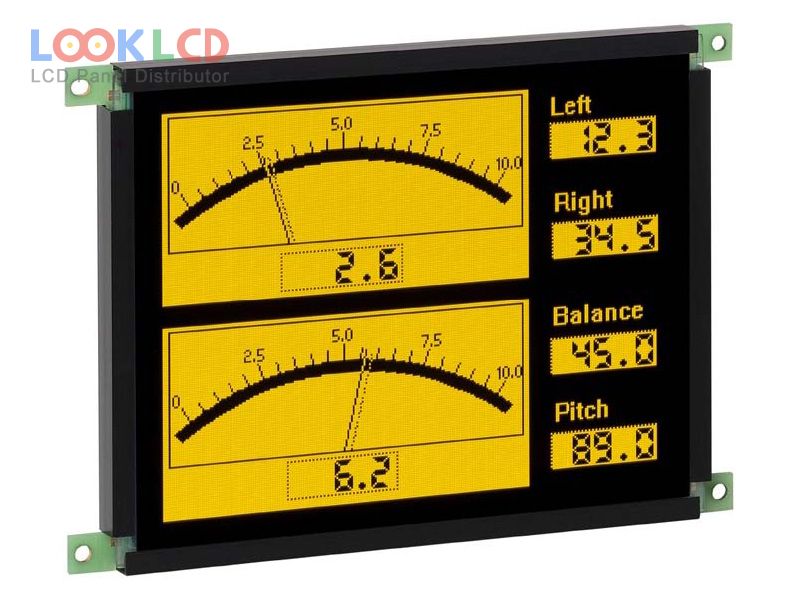

EL320.240.36 AGL

EL320.240.36 AGL
EL320.240.36 AGL thumb
Marka
Lumineq
Veličina
5.7
Primjena
IA
Rezolucija
320×240
Sastav
EL
Svjetlina
50
CR
50:1
Boje
Mono(Yellow)
Pozadinsko osvjetljenje
self
Sučelje
Parallel Data
In Stock
14498
Tehnički podaci

Broj dijela EL320.240.36 AGL
MarkaLumineq
Veličina5.7
PrimjenaIA
Rezolucija320×240
SastavEL
Svjetlina50
CR50:1
BojeMono(Yellow)
Pozadinsko osvjetljenjeself
SučeljeParallel Data
marka panelaLumineq
panelni modelEL320.240.36 AGL
vrsta panela EL , EL
veličina ploče5.7 inch
rezolucija320×240 , QVGA
aktivno područje115.1×86.3 mm
obris148.1×104.7 mm
površinskiAntiglare
svjetlina50 cd/m² (Typ.)
omjer kontrasta50 : 1 (Typ.)
boje prikazaMono(Yellow) (1-bit)
kut gledanja89/89/89/89 (Typ.)(L/R/U/D)
frekvencija120Hz
signalno sučeljeParallel Data (1ch, 4-bit), 20 pins
ulazni napon5/12V (Typ.)(VL/VH)
primjenaIA
Obiteljski model
EL320.240-FA3 Lumineq 4.9 320×240
EL320.240.36 Lumineq 5.7 320×240
EL320.240.36 AG Lumineq 5.7 320×240
EL320.240.36 ET Lumineq 5.7 320×240
EL320.240.36 ET CC Lumineq 5.7 320×240
EL320.240.36 HB Lumineq 5.7 320×240
EL320.240.36 HB NE PLANAR 5.7 320×240
EL320.240.36 HB NE CC PLANAR 5.7 320×240
EL320.240.36 HB SE PLANAR 5.7 320×240
EL320.240.36 LK Lumineq 5.7 320×240
