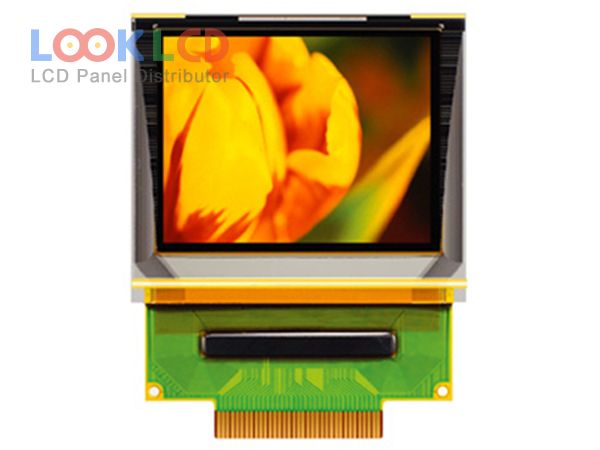

| Broj dijela | UG-6028GDEAF01 |
| Marka | WiseChip |
| Veličina | 1.45 |
| Primjena | IA |
| Rezolucija | 160×128 |
| Sastav | OLED |
| Svjetlina | 100 |
| CR | 2000:1 |
| Boje | 262K |
| Pozadinsko osvjetljenje | self |
| Sučelje | CPU/RGB/SPI |
| marka panela | Univision |
| panelni model | UG-6028GDEAF01 |
| vrsta panela | PM-OLED , OLED |
| veličina ploče | 1.45 inch |
| rezolucija | 160(RGB)×128 |
| aktivno područje | 28.78×23.024 mm |
| obris | 35.8×30.8×1.7 mm |
| površinski | |
| svjetlina | 100 cd/m² (Typ.) |
| omjer kontrasta | 2000 : 1 (Typ.) |
| boje prikaza | 262K (6-bit) |
| kut gledanja | 80/80/80/80 (Min.)(L/R/U/D) |
| vozač ic | COF Built-in SEPS525 |
| signalno sučelje | 8/9-bit 8080 parallel, 6-bit RGB, 4-wire SPI, 35 pins |
| ulazni napon | 2.8/2.8/13V (Typ.)(VDD/VDDIO/VDDH) |
| rohs: | |
| primjena | IA |
