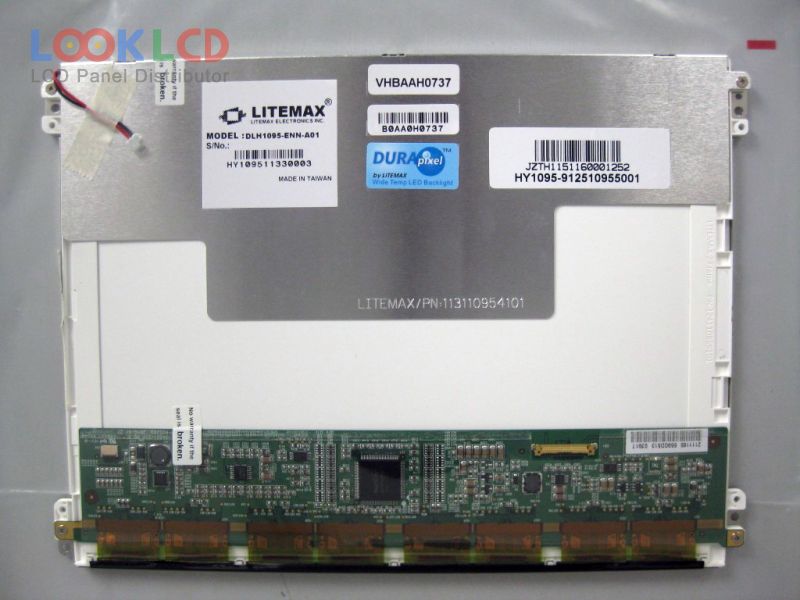

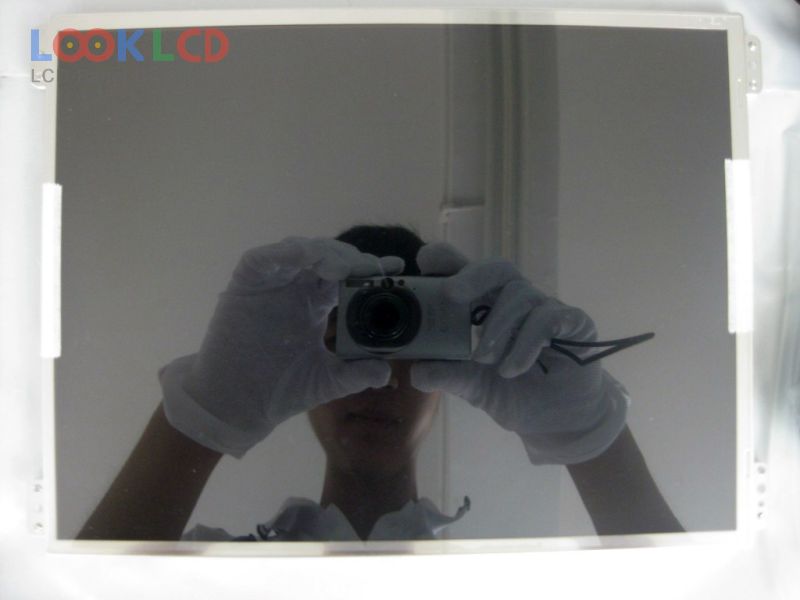

| Broj dijela | DLH1095 |
| Marka | LiteMax |
| Veličina | 10.4 |
| Primjena | IA |
| Rezolucija | 1024×768 |
| Sastav | LCM |
| Svjetlina | 1000 |
| CR | 700:1 |
| Boje | 262K |
| Pozadinsko osvjetljenje | WLED |
| Sučelje | LVDS |
| marka panela | LiteMax |
| panelni model | DLH1095 |
| vrsta panela | a-Si TFT-LCD , LCM |
| veličina ploče | 10.4 inch |
| rezolucija | 1024(RGB)×768 , XGA |
| način prikaza | AFFS, Normally Black, Transmissive |
| aktivno područje | 210.4×157.8 mm |
| obris | 233.8×173.2 mm |
| površinski | |
| svjetlina | 1000 cd/m² (Typ.) |
| omjer kontrasta | 700:1 (Typ.) |
| boje prikaza | 262K (6-bit), CIE193142% |
| vrijeme odziva | |
| kut gledanja | 89/89/89/89 (Typ.)(CR≥10)(L/R/U/D) |
| frekvencija | 60Hz |
| tip svjetiljke | WLEDEmbedded (LED Driver) |
| signalno sučelje | LVDS (1 ch, 6-bit), 30 pins |
| ulazni napon | 3.3V (Typ.) |
| primjena | IA |
| AA10SA6C-ADDD | Mitsubishi | 10.4 | 800×600 |
| DLH1055 | LiteMax | 10.4 | 1024×768 |
| DLH1095 | LiteMax | 10.4 | 1024×768 |
| KCB6448BSTT-X1 | Kyocera | 10.4 | 640×480 |
| LM64C350 | SHARP | 10.4 | 640×480 |
| LQ10D421 | SHARP | 10.4 | 640×480 |
| LTM10C209H | TOSHIBA | 10.4 | 640×480 |
| LTM10C321N | TOSHIBA | 10.4 | 1024×768 |
| M104GNX1 R1 | IVO | 10.4 | 1024×768 |
| NL8060BC26-27 | NLT | 10.4 | 800×600 |
| KG057QV1CA-G00 | Kyocera | 5.7 | 320×240 |
| LB121S03-TL03 | LG Display | 12.1 | 800×600 |
| LM64P83L | SHARP | 9.4 | 640×480 |
| LQ084S3LG01 | SHARP | 8.4 | 800×600 |
| LQ104V1DC41 | SHARP | 10.4 | 640×480 |
| LQ104V1DG5B | SHARP | 10.4 | 640×480 |
| LTD121C30S | TOSHIBA | 12.1 | 800×600 |
| M150GNN2 R1 | IVO | 15.0 | 1024×768 |
| NL6448BC18-01F | NLT | 5.7 | 640×480 |
| NL6448BC20-18D | NLT | 6.5 | 640×480 |
