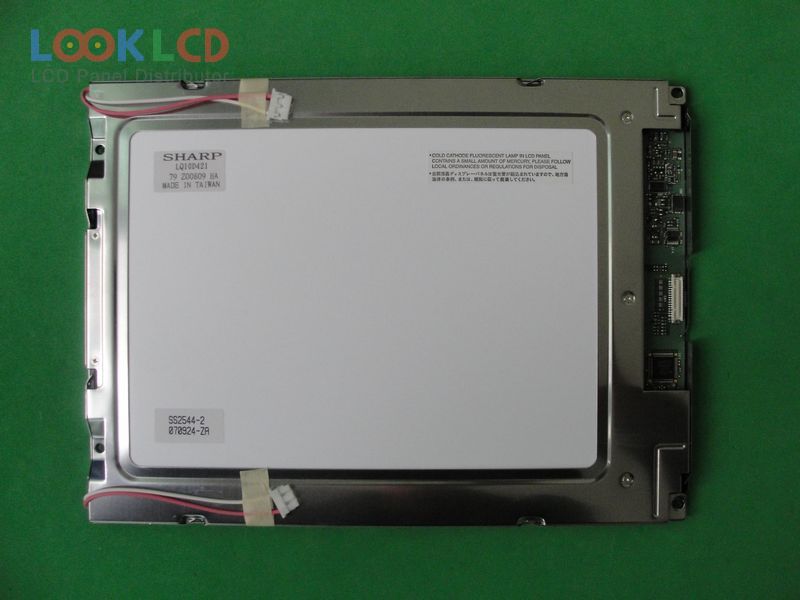

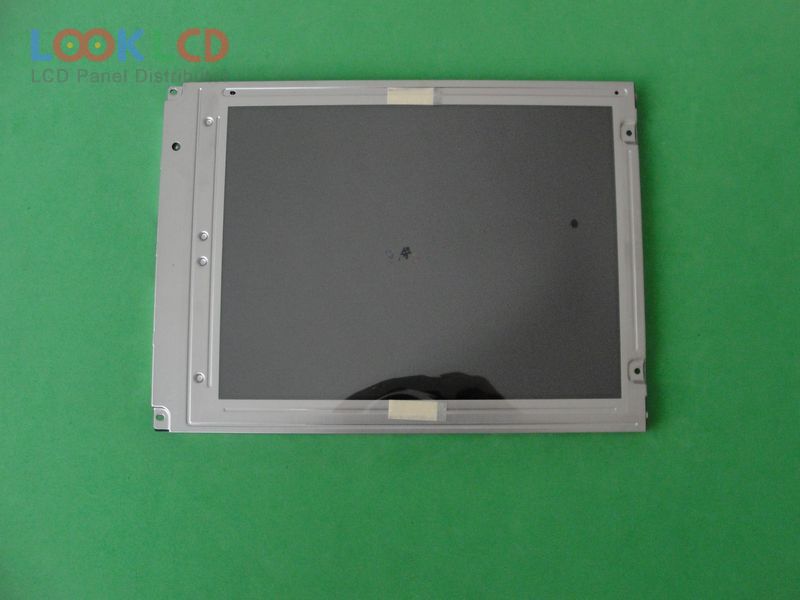

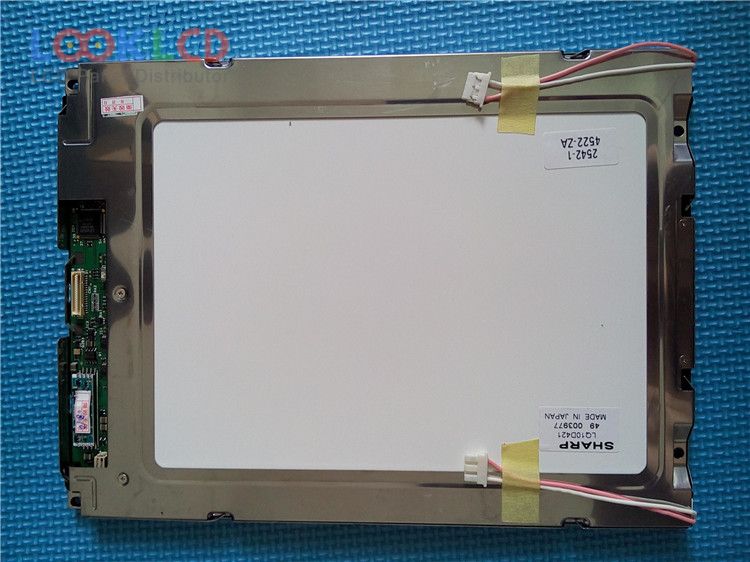

| Broj dijela | LQ10D421 |
| Marka | SHARP |
| Veličina | 10.4 |
| Primjena | IA |
| Rezolucija | 640×480 |
| Sastav | LCM |
| Svjetlina | 300 |
| CR | 300:1 |
| Boje | 262K |
| Pozadinsko osvjetljenje | CCFL |
| Sučelje | TTL |
| marka panela | SHARP |
| panelni model | LQ10D421 3 Compatible model |
| vrsta panela | a-Si TFT-LCD , LCM |
| veličina ploče | 10.4 inch |
| rezolucija | 640(RGB)×480 , VGA |
| način prikaza | TN, Normally White, Transmissive |
| aktivno područje | 211.2×158.4 mm |
| obris | 265×195×11.5 mm |
| površinski | Clear, Hard coating (3H), Antireflection |
| svjetlina | 300 cd/m² (Typ.) |
| omjer kontrasta | 300:1 (Typ.) |
| boje prikaza | 262K (6-bit) |
| vrijeme odziva | 20/40 (Typ.)(Tr/Td) |
| kut gledanja | 70/70/40/70 (Typ.)(CR≥10)(L/R/U/D) |
| frekvencija | 60Hz |
| tip svjetiljke | 2 pcsCCFLWithout Driver |
| signalno sučelje | Parallel RGB (1 ch, 6-bit), 31 pins |
| ulazni napon | 3.3/5.0V (Typ.)(VCC) |
| primjena | IA |
