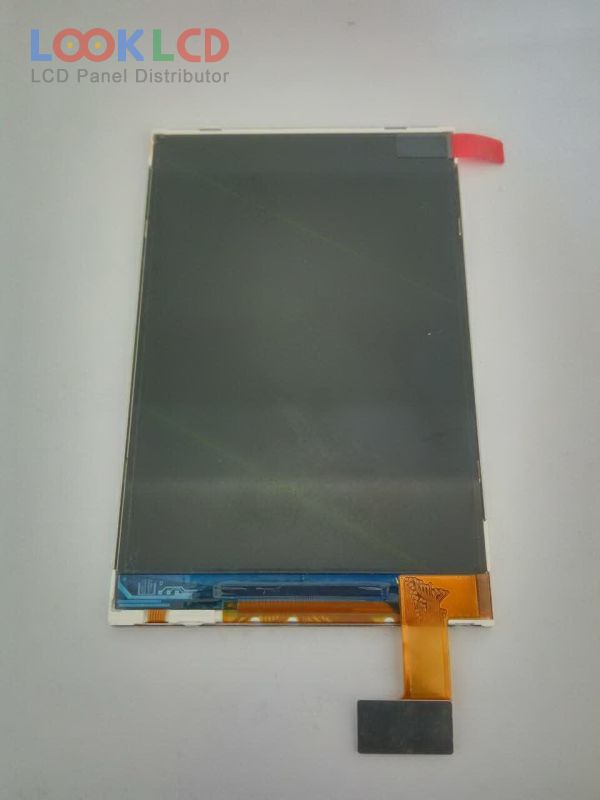

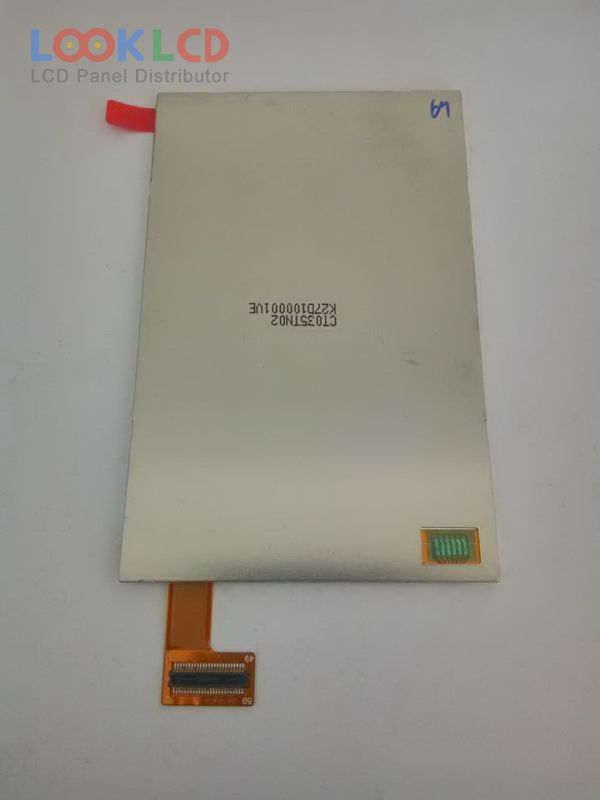

| Broj dijela | CT035TN02 |
| Marka | Innolux |
| Veličina | 3.5 |
| Primjena | MPH |
| Rezolucija | 320×480 |
| Sastav | LCM |
| Svjetlina | 320 |
| CR | 500:1 |
| Boje | 65K/262K |
| Pozadinsko osvjetljenje | WLED |
| Sučelje | CPU/RGB/SPI |
| marka panela | CHIMEI INNOLUX |
| panelni model | CT035TN02 |
| vrsta panela | a-Si TFT-LCD , LCM |
| veličina ploče | 3.5 inch |
| rezolucija | 320(RGB)×480 , HVGA |
| način prikaza | IPS, Normally Black, Transmissive |
| aktivno područje | 48.96×73.44 mm |
| obris | 54.76×85.24×2.1 mm |
| površinski | |
| svjetlina | 320 cd/m² (Typ.) |
| omjer kontrasta | 500:1 (Typ.) |
| boje prikaza | 65K/262K , CIE193170% |
| vrijeme odziva | 30 (Typ.)(Tr+Td) |
| kut gledanja | 80/80/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| frekvencija | 60Hz |
| tip svjetiljke | 1S5PWLEDWithout Driver |
| signalno sučelje | CPU/RGB/SPI, 50 pins |
| ulazni napon | 2.8/2.8V (Typ.)(VDD3/VCI) |
| primjena | MPH |
