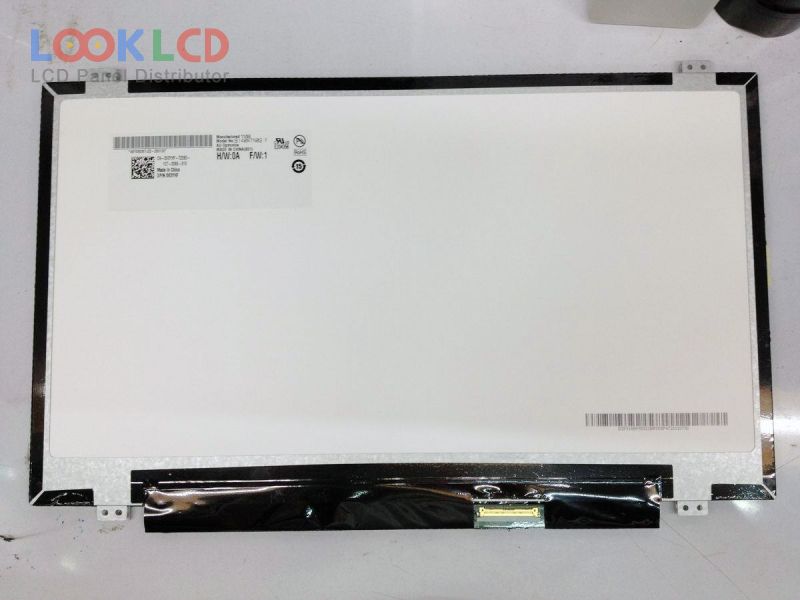

| Broj dijela | B140RTN02.1 |
| Marka | AUO |
| Veličina | 14.0 |
| Primjena | NBPC |
| Rezolucija | 1600×900 |
| Sastav | LCM |
| Svjetlina | 300 |
| CR | 600:1 |
| Boje | 262K |
| Pozadinsko osvjetljenje | WLED |
| Sučelje | LVDS |
| marka panela | AUO |
| panelni model | B140RTN02.1 |
| vrsta panela | a-Si TFT-LCD , LCM |
| veličina ploče | 14.0 inch |
| rezolucija | 1600(RGB)×900 , HD+ |
| način prikaza | TN, Normally White, Transmissive |
| aktivno područje | 309.6×174.15 mm |
| obris | 320.4×205.1×3.6 mm |
| stil oblika | Flat (PCBA Flat, Depth 3.4~4.0mm) |
| površinski | Glare (Haze 0%), Hard coating (3H), Reflection 4.3% (Typ.) |
| svjetlina | 300 cd/m² (Typ.) |
| omjer kontrasta | 600:1 (Typ.) |
| boje prikaza | 262K (6-bit), CIE193145% |
| vrijeme odziva | 8 (Typ.)(Tr+Td) |
| kut gledanja | 70/70/60/60 (Typ.)(CR≥10)(L/R/U/D) |
| frekvencija | 60Hz |
| tip svjetiljke | WLEDEmbedded (LED Driver) |
| signalno sučelje | LVDS (2 ch, 6-bit), 40 pins |
| ulazni napon | 3.3V (Typ.) |
| primjena | NBPC |
| B140RTN01.0 | AUO | 14.0 | 1600×900 |
| B140RTN02.1 | AUO | 14.0 | 1600×900 |
| B140RTN02.3 | AUO | 14.0 | 1600×900 |
| B140RTN03.0 | AUO | 14.0 | 1600×900 |
| B140RW01 V0 | AUO | 14.0 | 1600×900 |
| B140RW01 V2 | AUO | 14.0 | 1600×900 |
| B140RW02 V0 | AUO | 14.0 | 1600×900 |
| B140RW02 V1 | AUO | 14.0 | 1600×900 |
| B140RW02 V2 | AUO | 14.0 | 1600×900 |
| B140RW03 V1 | AUO | 14.0 | 1600×900 |
| B154SW02 V0 | AUO | 15.4 | 1680×1050 |
| B154SW02 V3 | AUO | 15.4 | 1680×1050 |
| B156XW04 V7 | AUO | 15.6 | 1366×768 |
| B170PW01 V1 | AUO | 17.0 | 1440×900 |
| LP140WH1-TLD2 | LG Display | 14.0 | 1366×768 |
| LP154WX4-TLC5 | LG Display | 15.4 | 1280×800 |
| LP156WF4-SPB1 | LG Display | 15.6 | 1920×1080 |
| LTN141XB-L04 | Samsung | 14.1 | 1024×768 |
| LTN150U2-L02 | Samsung | 15.0 | 1600×1200 |
| LTN156KT01-001 | Samsung | 15.6 | 1600×900 |
