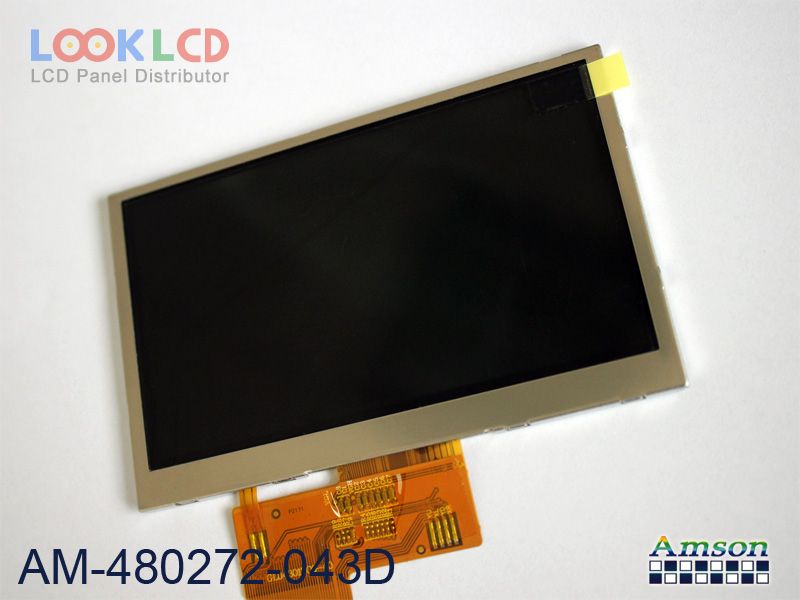

| Broj dijela | AM-480272-043D |
| Marka | Other |
| Veličina | 4.3 |
| Primjena | CNS |
| Rezolucija | 480×272 |
| Sastav | LCM |
| Svjetlina | |
| CR | |
| Boje | 16.7M |
| Pozadinsko osvjetljenje | WLED |
| Sučelje | TTL |
| marka panela | Amson |
| panelni model | AM-480272-043D |
| vrsta panela | a-Si TFT-LCD , LCM |
| veličina ploče | 4.3 inch |
| rezolucija | 480(RGB)×272 , WQVGA |
| način prikaza | TN, Normally White, Transmissive |
| aktivno područje | 95.04×53.856 mm |
| obris | 105.5×67.2×3.2 mm |
| površinski | |
| svjetlina | |
| omjer kontrasta | |
| boje prikaza | 16.7M (8-bit) |
| vrijeme odziva | |
| kut gledanja | |
| tip svjetiljke | WLEDWithout Driver |
| signalno sučelje | Parallel RGB (1 ch, 8-bit), 39 pins |
| ulazni napon | 3.0V (Typ.) |
| primjena | CNS |
