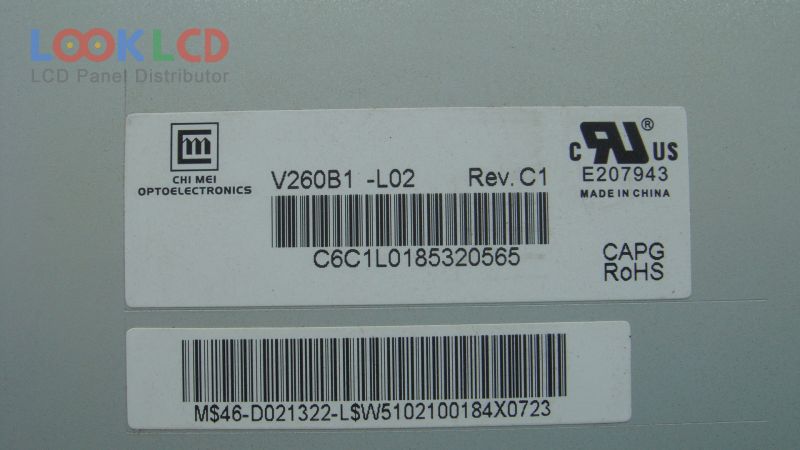

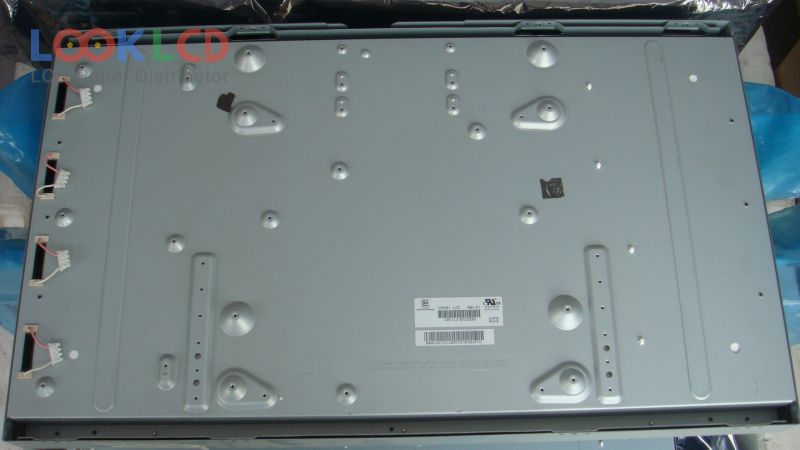

| Broj dijela | V260B1-L02 |
| Marka | Innolux |
| Veličina | 26.0 |
| Primjena | LCTV |
| Rezolucija | 1366×768 |
| Sastav | LCM |
| Svjetlina | 450 |
| CR | 800:1 |
| Boje | 16.2M |
| Pozadinsko osvjetljenje | CCFL |
| Sučelje | RSDS |
| marka panela | CMO |
| panelni model | V260B1-L02 |
| vrsta panela | a-Si TFT-LCD , LCM |
| veličina ploče | 26.0 inch |
| rezolucija | 1366(RGB)×768 , WXGA |
| način prikaza | TN, Normally White, Transmissive |
| aktivno područje | 575.769×323.712 mm |
| obris | 626×373 mm |
| površinski | |
| svjetlina | 450 cd/m² (Typ.) |
| omjer kontrasta | 800:1 (Typ.) |
| boje prikaza | 16.2M (6-bit + FRC), CIE193172% |
| vrijeme odziva | 3/5 (Typ.)(Tr/Td) |
| kut gledanja | 80/80/80/70 (Typ.)(CR≥10)(L/R/U/D) |
| frekvencija | 60Hz |
| tip svjetiljke | 4 pcsCCFLWithout Driver |

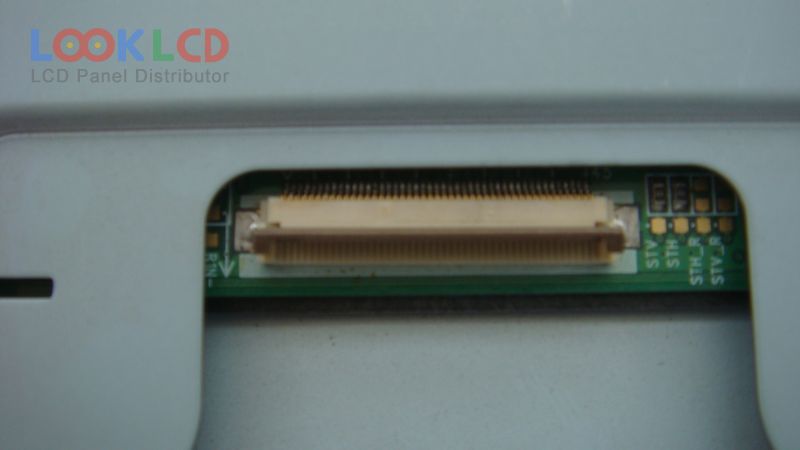

| signalno sučelje | RSDS (1 Channel), 45 pins |
| ulazni napon | 5.3.3/5.0V (Typ.)(VDD/VIN5) |
| primjena | LCTV |
