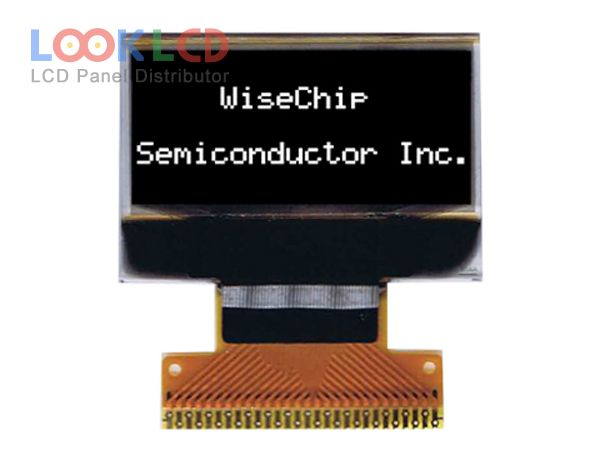

| Broj dijela | UG-9639TSWEG03 |
| Marka | WiseChip |
| Veličina | 0.82 |
| Primjena | IA |
| Rezolucija | 96×39 |
| Sastav | OLED |
| Svjetlina | 100 |
| CR | 10000:1 |
| Boje | Mono(White) |
| Pozadinsko osvjetljenje | self |
| Sučelje | CPU/SPI/I²C |
| marka panela | WiseChip |
| panelni model | UG-9639TSWEG03 |
| vrsta panela | PM-OLED , OLED |
| veličina ploče | 0.82 inch |
| rezolucija | 96×39 |
| aktivno područje | 19.372×7.858 mm |
| obris | 23.8×16.2×1.4 mm |
| površinski | |
| svjetlina | 100 cd/m² (Typ.) |
| omjer kontrasta | 10000 : 1 (Min.) |
| boje prikaza | Mono(White) (1-bit) |
| kut gledanja | |
| vozač ic | COG Built-in SSD1306 |
| signalno sučelje | 8-bit 6800/8080 parallel, 4-wire SPI, I²C, 28 pins |
| ulazni napon | 2.8/7.25V (Typ.)(VDD/VCC) |
| rohs: | |
| primjena | IA |
