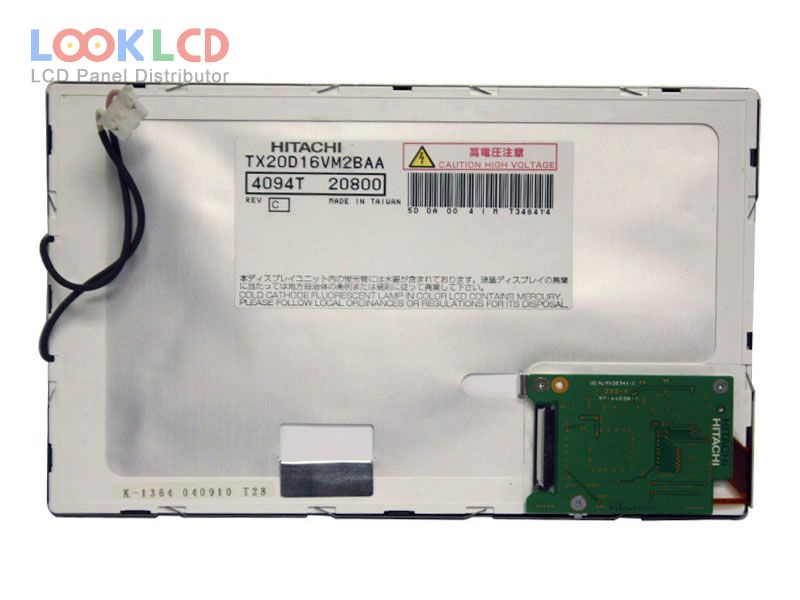

| Broj dijela | TX20D16VM2BAA |
| Marka | KOE |
| Veličina | 8.0 |
| Primjena | IA |
| Rezolucija | 800×480 |
| Sastav | LCM |
| Svjetlina | 350 |
| CR | 200:1 |
| Boje | 262K |
| Pozadinsko osvjetljenje | CCFL |
| Sučelje | TTL |
| marka panela | HITACHI |
| panelni model | TX20D16VM2BAA |
| vrsta panela | a-Si TFT-LCD , LCM |
| veličina ploče | 8.0 inch |
| rezolucija | 800(RGB)×480 , WVGA |
| način prikaza | TN, Normally White, Transmissive |
| aktivno područje | 174×104.4 mm |
| obris | 189×120 mm |
| površinski | Antiglare |
| svjetlina | 350 cd/m² (Typ.) |
| omjer kontrasta | 200:1 (Typ.) |
| boje prikaza | 262K (6-bit), CIE193160% |
| vrijeme odziva | 20/10 (Typ.)(Tr/Td) |
| kut gledanja | 50/50/50/50 (Min.)(CR≥10)(L/R/U/D) |
| frekvencija | 60Hz |
| tip svjetiljke | 1 pcsCCFLWithout Driver |
| signalno sučelje | CMOS (1 ch, 6-bit), 40 pins |
| ulazni napon | 3.3V (Typ.) |
| primjena | IA |
| AT080TN52 V.1 | Innolux | 8.0 | 800×600 |
| BP080WX1-100 | BOE | 8.0 | 1280×800 |
| CLAA080LA0BCW | CPT | 8.0 | 800×480 |
| EJ080NA-05A | Innolux | 8.0 | 800×600 |
| EJ080NA-05B | Innolux | 8.0 | 800×600 |
| G080Y1-T01 | Innolux | 8.0 | 800×480 |
| LB080WV4-A1 | LG Display | 8.0 | 800×480 |
| LD080WX2-SMN1 | LG Display | 8.0 | 800×1280 |
| N080XCG-L21 | Innolux | 8.0 | 1024×768 |
| TX20D16VM2BAA | KOE | 8.0 | 800×480 |
| AA070ME01-DA1 | Mitsubishi | 7.0 | 800×480 |
| AM-800480LTMQW-00H-F | AMPIRE | 5.0 | 800×480 |
| EL240.128.45 CC | Lumineq | 4.8 | 240×128 |
| G150XTN03.2 | AUO | 15.0 | 1024×768 |
| G185HAN01.0 | AUO | 18.5 | 1920×1080 |
| LLB121ST01 | Samsung | 12.1 | 800×600 |
| LM270WF5-SLN2 | LG Display | 27.0 | 1920×1080 |
| LQ104S1DG61 | SHARP | 10.4 | 800×600 |
| LTM12C289 | TOSHIBA | 12.1 | 800×600 |
| SX19V001-ZZA | KOE | 7.5 | 640×480 |
